SIP 4-7 (0.5-3W)

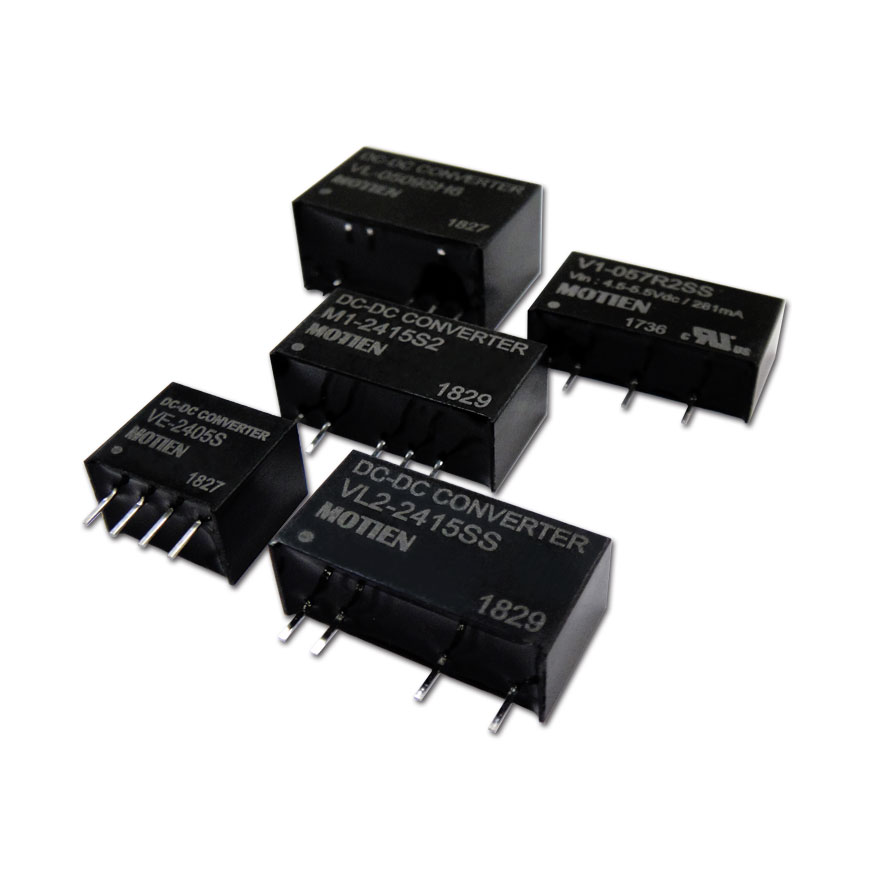

MOTIEN Technology offers a complete product series of isolated DC/DC converters with fully regulated, semi-regulated and unregulated output voltage. Different packages are available in SIP 4, SIP 6 and SIP 7, option of output power from 0.25W to 3W. Regulated MBW-3W is 4:1 input range product with single & dual output; it is the smallest footprint of 3W converter. All models are with high efficiency and CE certification!
| Series No. | Output Power | Input Voltage | Output Voltage | I/O Isolation | Package(Inch) | Un/Regulated | Cert. |
|---|---|---|---|---|---|---|---|
M1-1W |
1W | 5, 12, 15, 24, 48 (±10%) | 5, 9, 12, 15, ±5, ±9, ±12, ±15 | 1KV~3KV | SIP 7 (0.76*0.24(0.28)*0.39) | Semi-Regulated | - |
M1-2W |
2W | 5, 12, 15, 24 (±10%) | 5, 9, 12, 15, ±5, ±9, ±12, ±15 | 1KV~3KV | SIP 7 (0.76*0.28*0.39) | Semi-Regulated | - |
M1-3W |
3W | 5, 12 (±10%) | 5, 9, 12, 15, ±5, ±9, ±12, ±15 | 1KV~3KV | SIP 7 (0.76*0.28*0.39) | Semi-Regulated | - |
M4-1W |
1W | 5, 12, 24 (±10%) | 3.3, 5, 7.2, 9, 12, 15 | 1KV~3KV | SIP 7 (0.76*0.28*0.39) | Regulated | - |
|
3W | 5, 12, 24 (±10%) | 5, 9, 12, 15 | 3KV | SIP 4 (0.46*0.29*0.4) | Unregulated | - |
|
1W | 3.3, 5, 12, 24 (±10%) | 3.3, 5, 12, 15 | 3KV | SIP 4 (0.46*0.24*0.4) | Unregulated | - |
|
2W | 3.3, 5, 12, 24 (±10%) | 3.3, 5, 12, 15 | 3KV | SIP 4 (0.46*0.24*0.4) | Unregulated | - |
|
1W | 3.3, 5, 12, 24 (±10%) | 3.3,5,12,15,±3.3,±5,±12,±15 | 3/6KV | SIP 7 (0.76*0.24* 0. 39) | Unregulated | - |
|
2W | 3.3, 5, 12, 24 (±10%) | 3.3,5,12,15,±3.3,±5,±12,±15 | 3/6KV | SIP 7 (0.76*0.24* 0. 39) | Unregulated | - |
T1-1W |
1W | 5, 12, 24 (±10%) | 5, 12, 15, ±5, ±12, ±15 | 1.5KV~3KV | SIP 7 (0.76*0.24*0.39) | Unregulated | - |
V1-0.5W |
0.5W | 5, 12, 24 (±10%) | 3.3, 5, 7.2, 9, 12, 15, 18, 24, ±3.3, ±5, ±7.2, ±9, ±12, ±15, ±18, ±24 | 1KV~6KV | SIP 7 (0.76*0.24*0.39) | Unregulated | - |
V1-0.75W |
0.75W | 5, 12, 24 (±10%) | 3.3, 5, 7.2, 9, 12, 15, 18, 24, ±3.3, ±5, ±7.2, ±9, ±12, ±15, ±18, ±24 | 1KV~6KV | SIP 7 (0.76*0.24*0.39) | Unregulated | - |
V1-1W |
1W | 3.3, 5, 12, 15, 24 (±10%) | 3.3, 5, 7.2, 9, 12, 15, 18, 24, ±3.3, ±5, ±7.2, ±9, ±12, ±15, ±18, ±24 | 1KV~6KV | SIP 7 (0.76*0.24*0.39) | Unregulated | V |
V1-S/D01(02)-1W |
1W | 5, 12, 24 (±10%) | 5/3.3, 5/7.2, 5/9, 5/12, 5/15, 5/5, 7.2/7.2, 9/9, 12/12, 15/15 | 1KV~3KV | SIP 7 (0.76*0.24*0.39) | Unregulated | - |
V3-2W |
2W | 3.3, 5, 12, 15, 24 (±10%) | 3.3, 5, 7.2, 9, 12, 15, 18, 24, ±3.3, ±5, ±7.2, ±9, ±12, ±15, ±18, ±24 | 1KV~6KV | SIP 7 (0.76*0.24*0.39) | Unregulated | - |
V3-S/D01(02)-2W |
2W | 5, 12, 24 (±10%) | 5/3.3, 5/7.2, 5/9, 5/12, 5/15, 5/18, 5/24, 3.3/3.3, 5/5, 7.2/7.2, 9/9, 12/12, 15/15,18/18, 24/24 | 1KV~3KV | SIP 7 (0.76*0.24*0.39) | Unregulated | - |
V4-1W |
1W | 3.3, 5, 12, 24 (±10%) | 3.3, 5, 7.2, 9, 12, 15 | 1KV~3KV | SIP 7 (0.76*0.28*0.39) | Regulated | - |
VA-0.5W |
0.5W | 3.3, 5, 12, 15, 24 (±10%) | 3.3, 5, 7.2, 9, 12, 15, 18, 24 | 1KV~3KV | SIP 4 (0.46*0.24*0.4) | Unregulated | - |
VA-1W |
1W | 3.3, 5, 12, 15, 24 (±10%) | 3.3, 5, 7.2, 9, 12, 15, 18, 24 | 1KV~3KV | SIP 4 (0.46*0.24*0.4) | Unregulated | - |
VA-1.5W |
1.5W | 5, 12, 24 (±10%) | 3.3, 5, 7.2, 9, 12, 15, 18, 24 | 1KV~3KV | SIP 4 (0.46*0.24*0.4) | Unregulated | - |
VA-L-0.25W |
0.25W | 3.3, 5, 12, 15, 24 (±10%) | 3.3, 5, 7.2, 9, 12, 15, 18, 24 | 1KV~3KV | SIP 4 (0.46*0.24*0.4) | Unregulated | - |
VE-2W |
2W | 5, 12, 15, 24 (±10%) | 3.3, 5, 7.2, 9, 12, 15, 24 | 1KV~3KV | SIP 4 (0.46*0.29*0.4) | Unregulated | - |
VL-1W |
1W | 5, 9, 12, 15, 24 (±10%) | 3.3, 5, 9, 12, 15, 24, 15/-9 | 6KV | SIP 7 (0.77*0.39*0.49) | Unregulated | - |
VL2-2W |
2W | 5, 12, 15, 24 (±10%) | 3.3, 5, 9, 12, 15, ±5, ±9, ±12, ±15, 15/-9 | 5.2KV | SIP 7 (0.76*0.28*0.39) | Unregulated | - |
