SIP 7

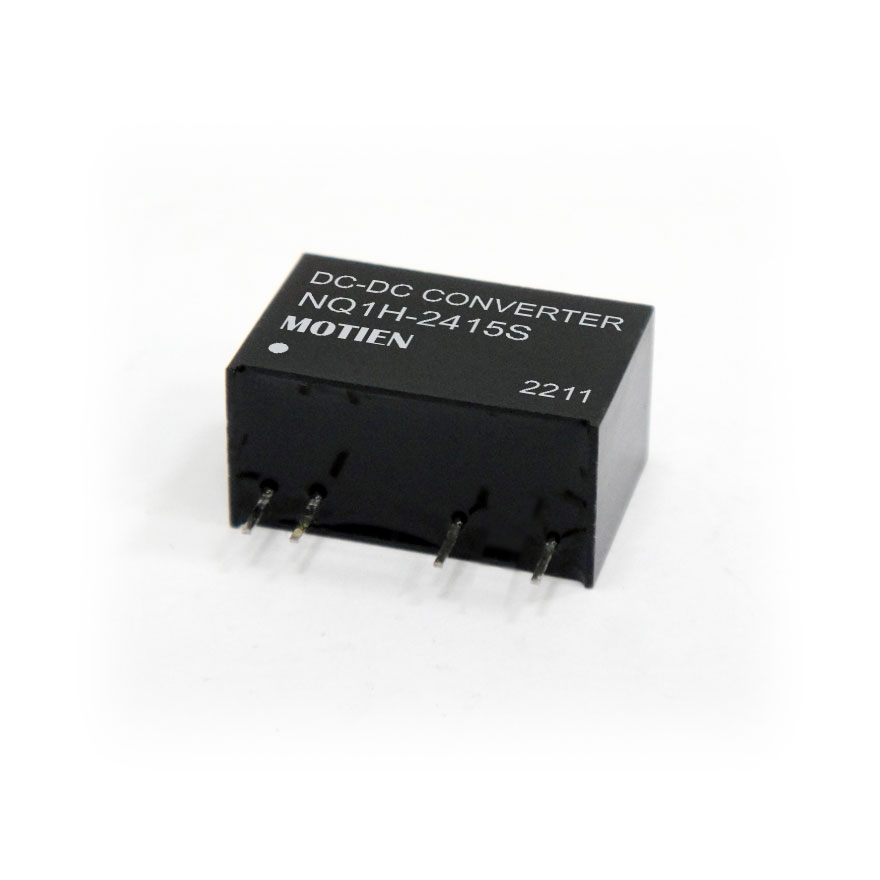

The NQ1H and NQ2H offers ultra-high I/O isolation 5000VAC with reinforced insulation, rated for 300 Vrms working voltage, CMTI 65 KV/μs at 1KV common mode voltage, low coupling capacitance and continuous short circuit protection which is suitable for IGBT application. Efficiency up to 82% and 86%.
All products are approved to IEC/EN/UL 62368-1
| Series No. | Output Power | Input Voltage | Output Voltage | I/O Isolation | Package(Inch) | Un/Regulated | Cert. |
|---|---|---|---|---|---|---|---|
|
1W | 5, 12, 15, 24 (±10%) | 3.3, 5, 9, 12, 15, ±3.3, ±5, ±9, ±12, ±15, +15/-9 | 5000Vac | SIP 7 (0.77*0.39* 0.49) | Unregulated | V |
|
2W | 5, 12, 15, 24 (±10%) | 3.3, 5, 9, 12, 15, ±3.3, ±5, ±9, ±12, ±15, +15/-9 | 5000Vac | SIP 7 (0.77*0.39* 0.49) | Unregulated | V |
