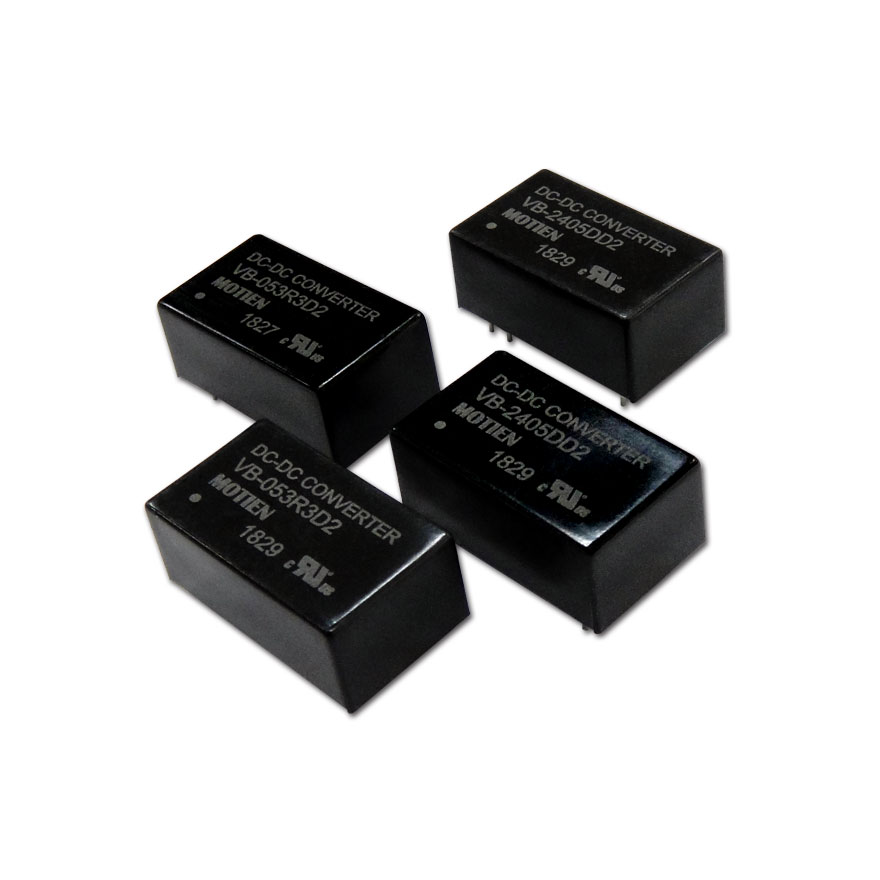

DIP 16 (1-10W)
MOTIEN Technology offers a complete product series of isolated DC/DC converters with regulated output voltage. Feature includes DIP 16 package with 2:1 regulated single & dual output, option of output power from 1W to 10W, all items are with short circuit protection and optional Remote on/off control functions! The standard plastic case version is CB & UL approved.
| Series No. | Output Power | Input Voltage | Output Voltage | I/O Isolation | Package(Inch) | Un/Regulated | Cert. |
|---|---|---|---|---|---|---|---|
|
10W | 9-36, 18-75 | 3.3, 5, 12, 15, 24, ±12, ±15 | 1.6KV | DIP 16 (0.94*0.54*0.41) | Regulated | V |
VB-1W |
1W | 4.5-9, 9-18, 18-36, 36-72 | 3.3, 5, 9, 12, 15, 24, ±3.3, ±5, ±9, ±12, ±15, ±24 | 1KV~3KV | DIP 16 (0.92*0.55*0.4) | Regulated | V |
VB-2W |
2W | 4.5-9, 9-18, 18-36, 36-72 | 3.3, 5, 9, 12, 15, 24, ±3.3, ±5, ±9, ±12, ±15, ±24 | 1KV~3KV | DIP 16 (0.92*0.55*0.4) | Regulated | V |
