SIP 3

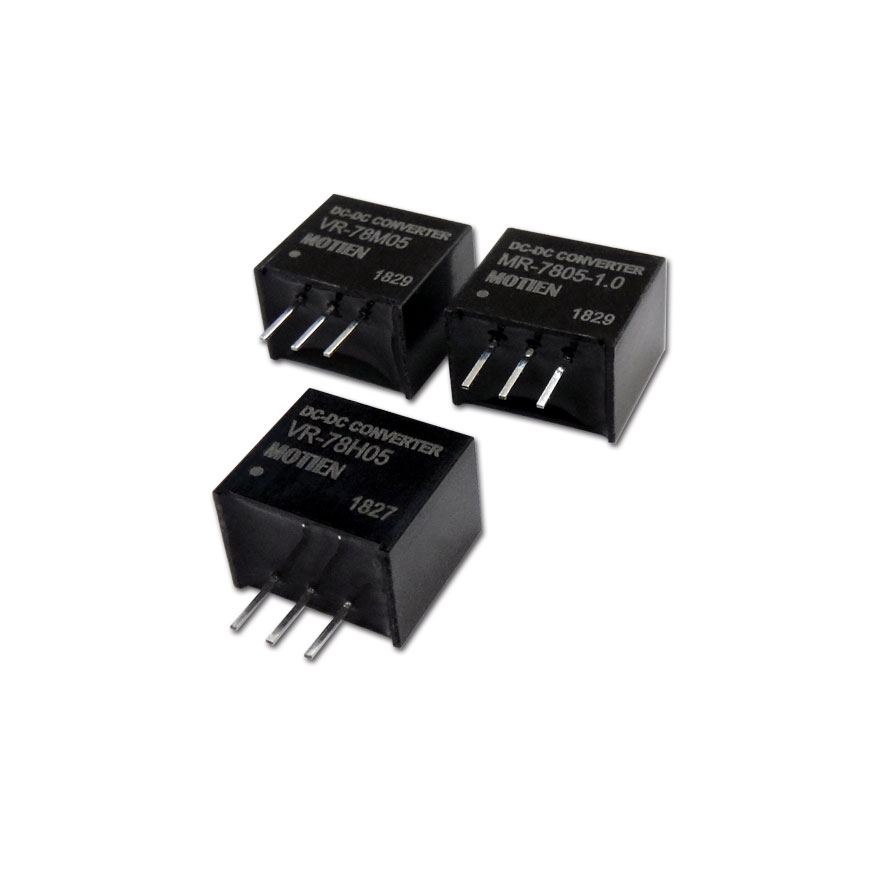

MOTIEN Technology offers a complete product series of non-isolated DC/DC converters. All series are switching regulator with small SIP 3 package and continuous short circuit protection. Pin-out compatible with LM78XX three terminals positive regulator. 0.5A and 1.0A output current are available. All series are with high efficiency and CE certification!
| Series No. | Output Power | Input Voltage | Output Voltage | I/O Isolation | Package(Inch) | Un/Regulated | Cert. |
|---|---|---|---|---|---|---|---|
MR-78XX-0.5 |
0.5A | 4.5-28, 7-28, 14-28, 17-28 | 3.3, 5, 12, 15 | Non-Isolation | SIP 3 (0.46*0.3*0.4) | Regulated | - |
MR-78XX-1.0 |
1A | 7-28, 8-28 | 3.3, 5 | Non-Isolation | SIP 3 (0.46*0.3*0.4) | Regulated | - |
|
1A | 4.6~36, 4.75~36, 6.5~36, 9~36, 12~36, 15~36, 18~36 | 1.2, 1.5, 1.8, 2.5, 3.3, 5, 6.5, 9, 12, 15 | Non-Isolation | SIP 3 (0.46*0.30*040) | Regulated | - |
|
2A | 3~5.5, 3.8~5.5, 4.6~36, 4.75~36, 6.5~36, 9~36, 12~36, 15~36, 18~36 | 1.2, 1.5, 1.8, 2.5, 3.3, 5, 6.5, 9, 12, 15 | Non-Isolation | SIP 3 (0.55*0.30*040) | Regulated | - |
VR-78H |
0.4-0.5A | 9-72, 14-72, 17-72, 21-72 | 3.3, 5, 6.5, 7.2, 9, 12, 15 | Non-Isolation | SIP 3 (0.46*0.3*0.4) | Regulated | - |
VR-78M |
0.5A | 4.75-30, 4.75-34, 6.5-34, 8-34, 9-34, 11-34, 15-34, 18-34 | 1.5, 1.8, 2.5, 3.3, 5, 6.5, 7.2, 9, 12, 15 | Non-Isolation | SIP 3 (0.46*0.3*0.4) | Regulated | - |
VR-78XX-1.0 |
1A | 4.75-18, 6.5-18 | 1.5, 1.8, 2.5, 3.3, 5 | Non-Isolation | SIP 3 (0.46*0.3*0.4) | Regulated | - |
