2×1

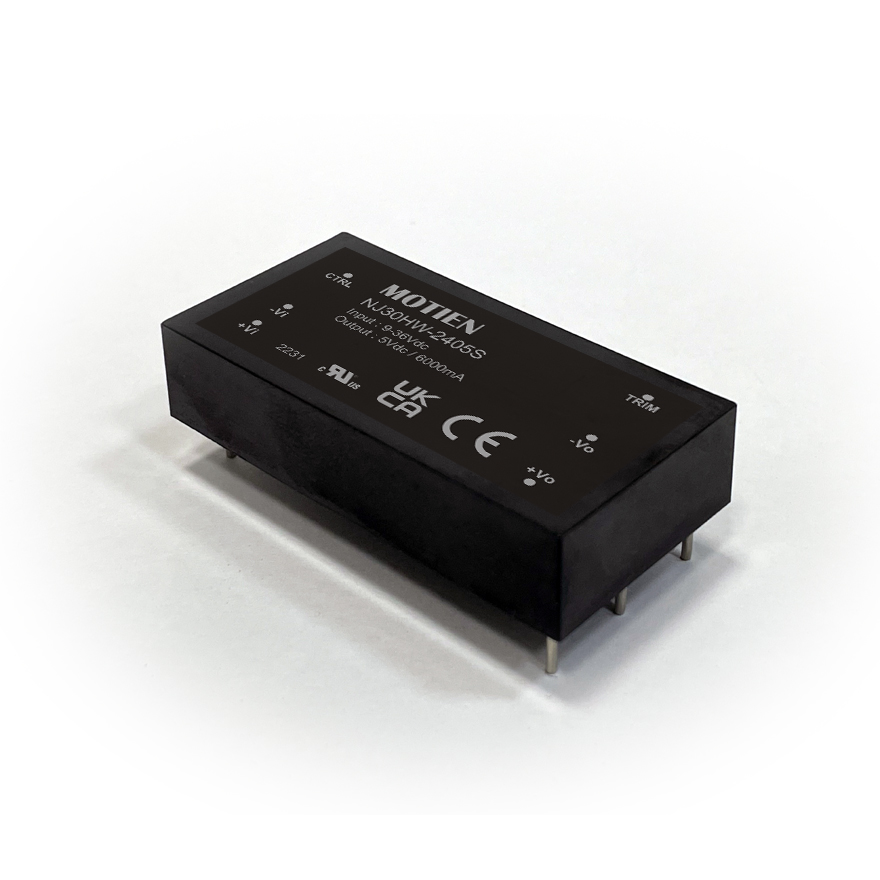

The NJ30HW series with 2"×1" package offers ultra-high I/O isolation 5000VAC with reinforced insulation, rated for 250 Vrms working voltage, with further features of continuous short circuit protection, under voltage lockout, over voltage/over current/over tempterature protection, remote on/off control and efficiency up to 89%. The operating temperature range is between -40°C ~ 100 °C.
All products are approved to UL/cUL/IEC/EN 62368-1
| Series No. | Output Power | Input Voltage | Output Voltage | I/O Isolation | Package(Inch) | Un/Regulated | Cert. |
|---|---|---|---|---|---|---|---|
|
30W | 9-36, 18-75 | 5, 12, 15, ±5, ±12, ±15 | 5000Vac | 2×1 (2*1*0.4) | Regulated | V |
