1×1 (15-40W)

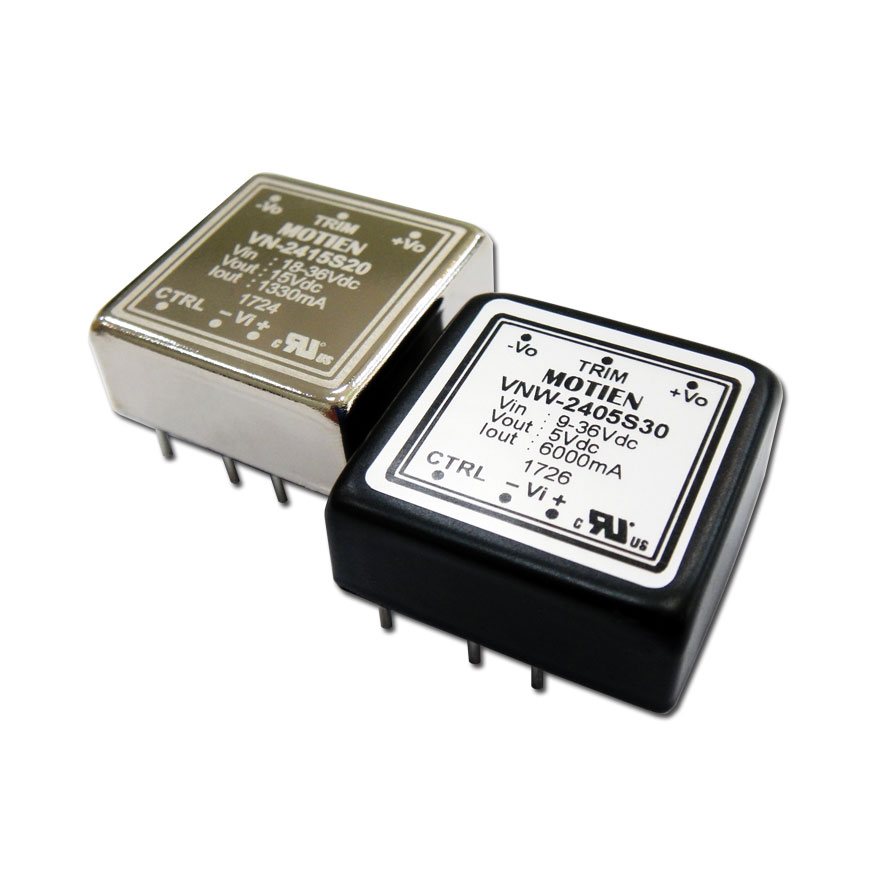

MOTIEN Technology offers a complete product series of isolated DC/DC converters with fully regulated output voltage. Feature includes high power density with adequate 1"x1" package, option of output power from 15W to 40W. Both 2:1 & 4:1 input range with regulated single & dual output are available. All series are equipped with continuous short circuit protection, over load/current/voltage protection with the function of adjustable output voltage and soft start; optional heat sink also can be a good choice. For VN/VNW-20W, built-in EMI filter meets EN55032 Class A without external components. VN/VNW-15W/20W/30W series are CE, UL and CB approved.

Series No. Output Power Input Voltage Output Voltage I/O Isolation Package(Inch) Un/Regulated Cert.

VN-15W

 15W 9-18, 18-36, 36-75 3.3, 5, 12, 15, ±5, ±12, ±15 1.6KV 1×1 (1*1*0.41) Regulated V

VN-20W

 20W 9-18, 18-36, 36-75 3.3, 5, 12, 15, ±12, ±15 1.6KV 1×1 (1*1*0.41) Regulated V

new
VN-30W

 30W 9-18, 18-36, 36-75 3.3, 5, 12, 15, ±12, ±15 1.6KV 1×1 (1*1*0.41) Regulated V

VNW-15W

 15W 9-36, 18-75 3.3, 5, 12, 15, ±5, ±12, ±15 1.6KV 1×1 (1*1*0.41) Regulated V

VNW-20W

 20W 9-36, 18-75 3.3, 5, 12, 15, ±12, ±15 1.6KV 1×1 (1*1*0.41) Regulated V

new
VNW-30W

 30W 9-36, 18-75 3.3, 5, 12, 15, ±12, ±15 1.6KV 1×1 (1*1*0.41) Regulated V

new
VNW-40W

 40W 9-36, 18-75 5, 12, 15, 24, ±12, ±15 1.6KV 1×1 (1*1*0.41) Regulated V
