Non-Isolation
MOTIEN Technology offers a complete product series of isolated and non-isolated DC/DC converters with SMD package.
For isolated series, fix input F1-1W and F2-2W are having 4200Vdc high isolation. Rated working voltage for 250Vrms and 400Vdc. For 2W 4:1 input range with regulated FBW-2W, feature includes continuous short circuit protection and remote on/off control. The above series are available in tape&reel package.

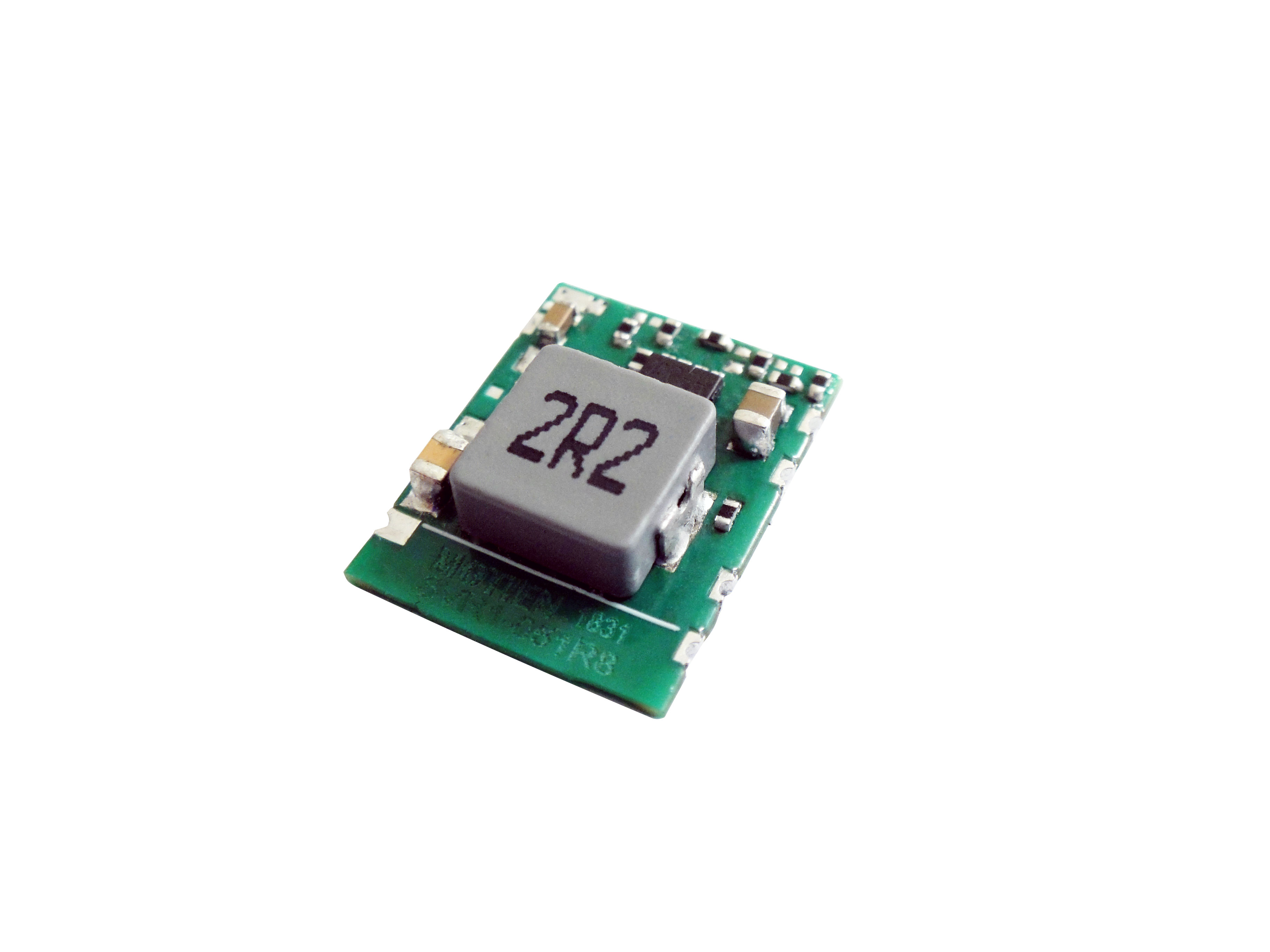

For non-isolated series, SVR-1.0 series with 1A output current is having high efficiency with adjustable output voltage and excellent line/load regulation.
| Series No. | Output Power | Input Voltage | Output Voltage | I/O Isolation | Package(Inch) | Un/Regulated | Cert. |
|---|---|---|---|---|---|---|---|
|
1A | 3-5.5, 3.8-5.5, 4.6-36, 4.75-36, 6.5-36, 9-36, 12-36, 15-36, 18-36 | 1.2, 1.5, 1.8, 2.5, 3.3, 5, 6.5, 9, 12, 15 | Non-Isolation | SMD (0.6*0.47*0.15) | Regulated | - |
|
0.5A | 9-72, 14-72, 17-72, 21-72 | 3.3, 5, 6.5, 7.2, 9, 12, 15 | Non-Isolation | SMD (0.77*0.47*0.2) | Regulated | - |
