MOTIEN Technology offers a complete product series of isolated DC/DC converters with fully regulated output voltage.

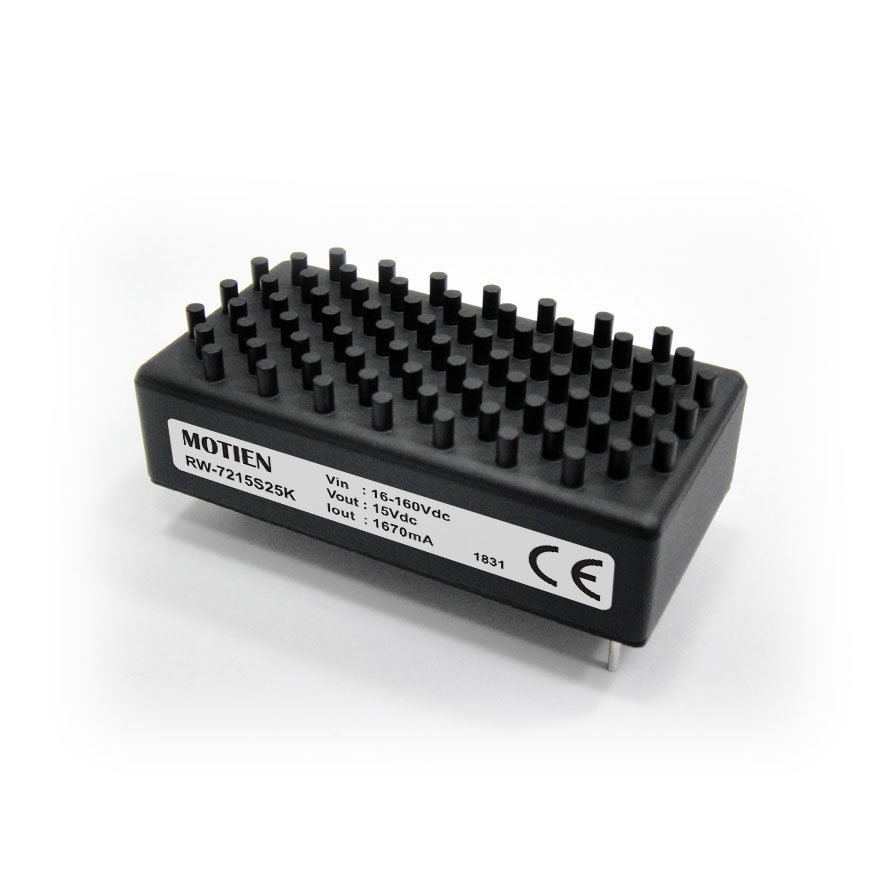

Newest railway series RW-20W and RW-25W are having ultra wide input range, high efficiency with extended operating temperature range - 40~100℃ max, over load/voltage protection are built-in and with the additional function of adjustable output voltage, remote on/off control and continuous short circuit protection. EN50155 approved which can be applied for railway applications. All models are CE certification reached!
| Series No. | Output Power | Input Voltage | Output Voltage | I/O Isolation | Package(Inch) | Un/Regulated | Cert. |
|---|---|---|---|---|---|---|---|
|
25W | 16-160 | 5, 12, 15, 24 | 3KV | 2x1 (2.09*1.09*0.65) | Regulated | - |
