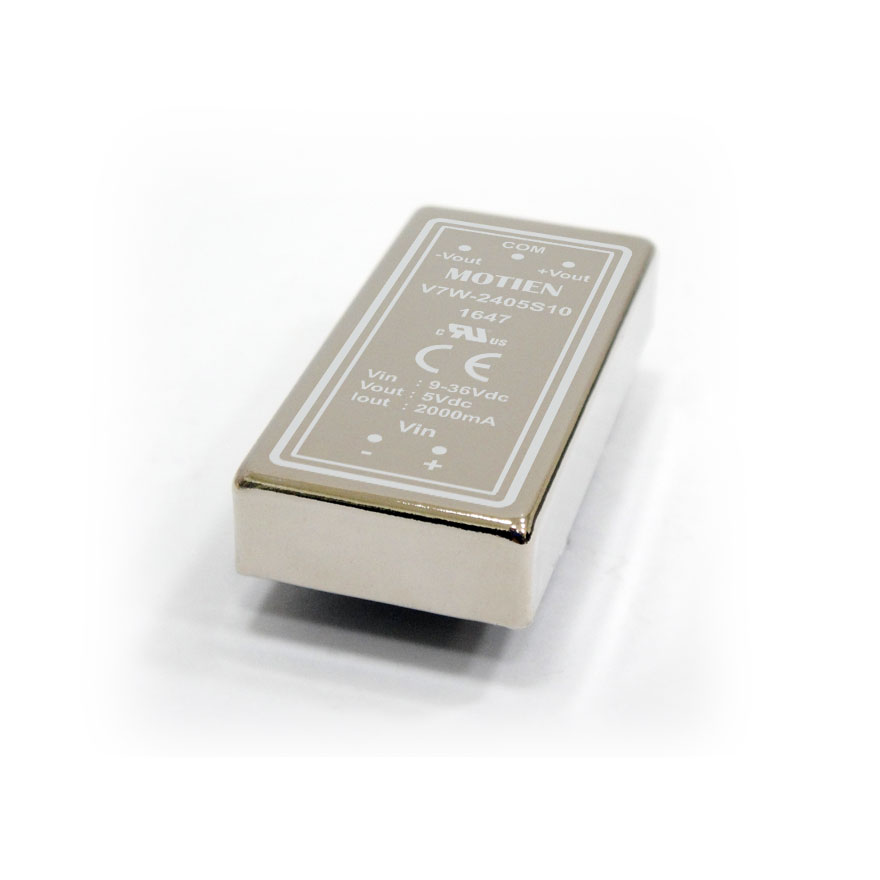

V7W-10W 系列
10W 4:1 稳压单/双输出
V7W系列是具成本效率的10W单/双输出直流对直流电源转换器。V7W-15W 系列为金属2"x1"外壳包装，具备1500 Vdc. 输入/输出隔离电压,连续短路保护,自动重启与高线变动率/负载变动率。使用不易燃树脂，输入电压24, 48 Vdc.，输出电压3.3, 5, 7.2, 9, 12, 15, ±5, ±7.2, ±9, ±12, ±15 Vdc.，效率高达85%，输出电压准确度最高可达±1%。
● 宽范围4:1输入
● 内部 SMD 构造
● 1500 VDC 隔离电压
● 连续短路保护
● 效率高达 85%
● 操作温度范围 -40°C ~+85°C
● 可选配遥控开关装置
● 电磁干扰符合 EN55032 Class A
Download
| 型号 | 输出功率 | 输入电压范围(VDC) | 输出电压(VDC) | 输出电流 | 包装 |
|---|---|---|---|---|---|
| V7W-243R3S10 | 6.6W | 9-36 | 3.3 | 2000 | 2×1 |
| V7W-2405S10 | 10W | 9-36 | 5 | 2000 | 2×1 |
| V7W-247R2S10 | 10W | 9-36 | 7.2 | 1388 | 2×1 |
| V7W-2409S10 | 10W | 9-36 | 9 | 1111 | 2×1 |
| V7W-2412S10 | 10W | 9-36 | 12 | 833 | 2×1 |
| V7W-2415S10 | 10W | 9-36 | 15 | 666 | 2×1 |
| V7W-2405D10 | 10W | 9-36 | ±5 | ±1000 | 2×1 |
| V7W-247R2D10 | 10W | 9-36 | ±7.2 | ±694 | 2×1 |
| V7W-2409D10 | 10W | 9-36 | ±9 | ±555 | 2×1 |
| V7W-2412D10 | 10W | 9-36 | ±12 | ±416 | 2×1 |
| V7W-2415D10 | 10W | 9-36 | ±15 | ±333 | 2×1 |
| V7W-483R3S10 | 6.6W | 18-72 | 3.3 | 2000 | 2×1 |
| V7W-4805S10 | 10W | 18-72 | 5 | 2000 | 2×1 |
| V7W-487R2S10 | 10W | 18-72 | 7.2 | 1388 | 2×1 |
| V7W-4809S10 | 10W | 18-72 | 9 | 1111 | 2×1 |
| V7W-4812S10 | 10W | 18-72 | 12 | 833 | 2×1 |
| V7W-4815S10 | 10W | 18-72 | 15 | 666 | 2×1 |
| V7W-4805D10 | 10W | 18-72 | ±5 | ±1000 | 2×1 |
| V7W-487R2D10 | 10W | 18-72 | ±7.2 | ±694 | 2×1 |
| V7W-4809D10 | 10W | 18-72 | ±9 | ±555 | 2×1 |
| V7W-4812D10 | 10W | 18-72 | ±12 | ±416 | 2×1 |
| V7W-4815D10 | 10W | 18-72 | ±15 | ±333 | 2×1 |
