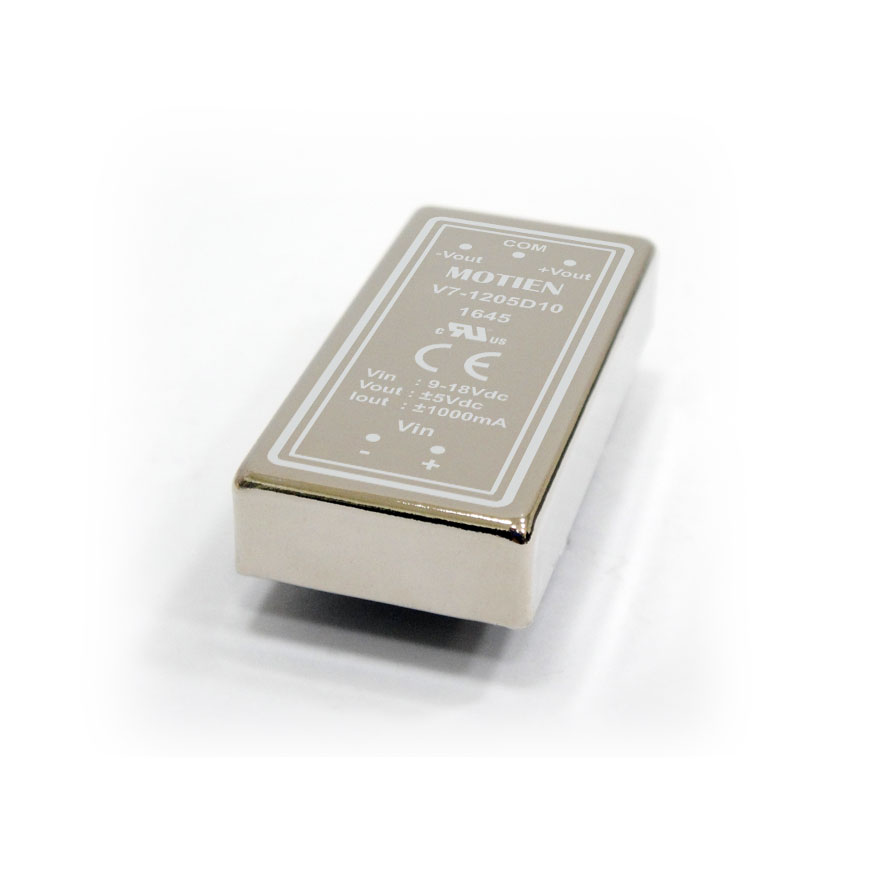

V7-10W 系列
10W 2:1 稳压单/双输出
V7系列是具成本效率的10W单/双输出直流对直流电源转换器。V7-10W 系列为金属2"x1"外壳包装，具备1500 Vdc. 输入/输出隔离电压,连续短路保护,自动重启与高线变动率/负载变动率。使用不易燃树脂，输入电压12,24, 48 Vdc.，输出电压3.3, 5, 7.2, 9, 12, 15, 18, 24, ±3.3, ±5, ±7.2, ±9, ±12, ±15, ±18, ±24 Vdc.，效率高达86%，输出电压准确度最高可达±1%。
● 宽范围2:1输入
● 内部 SMD 构造
● 1500 VDC 隔离电压
● 连续短路保护
● 效率高达 86%
● 操作温度范围 -40°C ~+85°C
● 电磁干扰符合 EN55032 Class A
● 取得UL,CB 认证(1500VDC 隔离电压型号)
Download
| 型号 | 输出功率 | 输入电压范围(VDC) | 输出电压(VDC) | 输出电流 | 包装 |
|---|---|---|---|---|---|
| V7-123R3S10 | 6.6W | 9-18 | 3.3 | 2000 | 2×1 |
| V7-1205S10 | 10W | 9-18 | 5 | 2000 | 2×1 |
| V7-127R2S10 | 10W | 9-18 | 7.2 | 1388 | 2×1 |
| V7-1209S10 | 10W | 9-18 | 9 | 1111 | 2×1 |
| V7-1212S10 | 10W | 9-18 | 12 | 833 | 2×1 |
| V7-1215S10 | 10W | 9-18 | 15 | 666 | 2×1 |
| V7-1218S10 | 10W | 9-18 | 18 | 555 | 2×1 |
| V7-1224S10 | 10W | 9-18 | 24 | 416 | 2×1 |
| V7-123R3D10 | 6.6W | 9-18 | ±3.3 | ±1000 | 2×1 |
| V7-1205D10 | 10W | 9-18 | ±5 | ±1000 | 2×1 |
| V7-127R2D10 | 10W | 9-18 | ±7.2 | ±694 | 2×1 |
| V7-1209D10 | 10W | 9-18 | ±9 | ±555 | 2×1 |
| V7-1212D10 | 10W | 9-18 | ±12 | ±416 | 2×1 |
| V7-1215D10 | 10W | 9-18 | ±15 | ±333 | 2×1 |
| V7-1218D10 | 10W | 9-18 | ±18 | ±277 | 2×1 |
| V7-1224D10 | 10W | 9-18 | ±24 | ±208 | 2×1 |
| V7-243R3S10 | 6.6W | 18-36 | 3.3 | 2000 | 2×1 |
| V7-2405S10 | 10W | 18-36 | 5 | 2000 | 2×1 |
| V7-247R2S10 | 10W | 18-36 | 7.2 | 1388 | 2×1 |
| V7-2409S10 | 10W | 18-36 | 9 | 1111 | 2×1 |
| V7-2412S10 | 10W | 18-36 | 12 | 833 | 2×1 |
| V7-2415S10 | 10W | 18-36 | 15 | 666 | 2×1 |
| V7-2418S10 | 10W | 18-36 | 18 | 555 | 2×1 |
| V7-2424S10 | 10W | 18-36 | 24 | 416 | 2×1 |
| V7-243R3D10 | 6.6W | 18-36 | ±3.3 | ±1000 | 2×1 |
| V7-2405D10 | 10W | 18-36 | ±5 | ±1000 | 2×1 |
| V7-247R2D10 | 10W | 18-36 | ±7.2 | ±694 | 2×1 |
| V7-2409D10 | 10W | 18-36 | ±9 | ±555 | 2×1 |
| V7-2412D10 | 10W | 18-36 | ±12 | ±416 | 2×1 |
| V7-2415D10 | 10W | 18-36 | ±15 | ±333 | 2×1 |
| V7-2418D10 | 10W | 18-36 | ±18 | ±277 | 2×1 |
| V7-2424D10 | 10W | 18-36 | ±24 | ±208 | 2×1 |
| V7-483R3S10 | 6.6W | 36-72 | 3.3 | 2000 | 2×1 |
| V7-4805S10 | 10W | 36-72 | 5 | 2000 | 2×1 |
| V7-487R2S10 | 10W | 36-72 | 7.2 | 1388 | 2×1 |
| V7-4809S10 | 10W | 36-72 | 9 | 1111 | 2×1 |
| V7-4812S10 | 10W | 36-72 | 12 | 833 | 2×1 |
| V7-4815S10 | 10W | 36-72 | 15 | 666 | 2×1 |
| V7-4818S10 | 10W | 36-72 | 18 | 555 | 2×1 |
| V7-4824S10 | 10W | 36-72 | 24 | 416 | 2×1 |
| V7-483R3D10 | 6.6W | 36-72 | ±3.3 | ±1000 | 2×1 |
| V7-4805D10 | 10W | 36-72 | ±5 | ±1000 | 2×1 |
| V7-487R2D10 | 10W | 36-72 | ±7.2 | ±694 | 2×1 |
| V7-4809D10 | 10W | 36-72 | ±9 | ±555 | 2×1 |
| V7-4812D10 | 10W | 36-72 | ±12 | ±416 | 2×1 |
| V7-4815D10 | 10W | 36-72 | ±15 | ±333 | 2×1 |
| V7-4818D10 | 10W | 36-72 | ±18 | ±277 | 2×1 |
| V7-4824D10 | 10W | 36-72 | ±24 | ±208 | 2×1 |
