2×1 (7.5-60W)

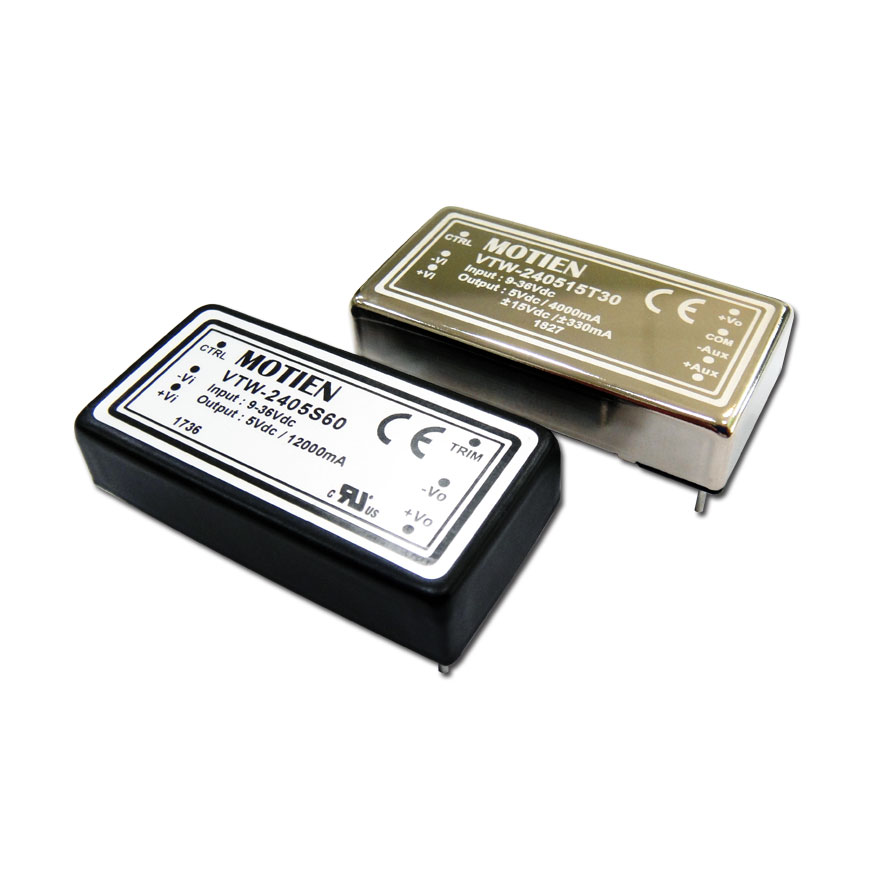

模甸科技提供一系列完整的隔离稳压输出直流对直流电源转换器,包含高功率密度之2"x1"包装、2:1与4:1宽输入范围产品,输出瓦特数介于7.5W至60W。全系列皆内建短路保护装置,另有散热片可供选择。全系列产品皆具有高效率与CE认证。
系列 | 输出功率 | 输入电压范围 | 输出电压 | I/O 隔离电压 | 包装(Inch) | 非/稳压 | 认证 |
---|---|---|---|---|---|---|---|
V7-10W |
10W | 9-18, 18-36, 36-72 | 3.3, 5, 7.2, 9, 12, 15, 18, 24, ±3.3, ±5, ±7.2, ±9, ±12, ±15, ±18, ±24 | 1.5KV | 2×1 (2*1*0.4) | Regulated | V |
V7-15W |
15W | 9-18, 18-36, 36-72 | 3.3, 5, 7.2, 9, 12, 15, 18, 24, ±3.3, ±5, ±7.2, ±9, ±12, ±15, ±18, ±24 | 1.5KV | 2×1 (2*1*0.4) | Regulated | V |
V7E-15W |
15W | 9-18, 18-36, 36-72 | 3.3, 5, 12, 15, ±3.3, ±5, ±12, ±15 | 1.6KV | 2×1 (2*1*0.4) | Regulated | - |
V7W-10W |
10W | 9-36, 18-72 | 3.3, 5, 7.2, 9, 12, 15, ±5, ±7.2, ±9, ±12, ±15 | 1.5KV | 2×1 (2*1*0.4) | Regulated | V |
V7W-15W |
15W | 9-36, 18-72 | 3.3, 5, 7.2, 9, 12, 15, ±5, ±7.2, ±9, ±12, ±15 | 1.5KV | 2×1 (2*1*0.4) | Regulated | V |
V8-20W |
20W | 9-18, 18-36, 36-75 | 3.3, 5, 12, 15, ±12, ±15 | 1.6KV | 2×1 (2*1*0.4) | Regulated | - |
V9-20W |
20W | 9-36, 18-75 | 3.3, 5, 12, 15, ±5, ±12, ±15 | 1.6KV | 2×1 (2*1*0.4) | Regulated | V |
VT-30W |
30W | 9-18, 18-36, 36-75 | 3.3, 5, 5.1, 12, 15, ±5, ±12, ±15 | 1.6KV | 2×1 (2*1*0.4) | Regulated | - |
VT-40W |
40W | 9-18, 18-36, 36-75 | 3.3, 5, 12, 15, ±12, ±15 | 1.6KV | 2×1 (2*1*0.4) | Regulated | - |
VT-50W |
50W | 9-18, 18-36, 36-75 | 3.3, 5, 12, 15 | 1.6KV | 2×1 (2*1*0.45) | Regulated | V |
VTW-30W |
30W | 9-36, 18-75 | 3.3, 5, 5.1, 12, 15, ±5, ±12, ±15, 3.3/±12, 3.3/±15, 5/±12, 5/±15 | 1.6KV | 2×1 (2*1*0.4) | Regulated | - |
|
60W | 9-36, 18-75 | 5, 12, 15, ±12, ±15 | 1.6KV | 2×1 (2*1*0.45) | Regulated | V |
