M9-20W 系列
20W 4:1 稳压单/双输出

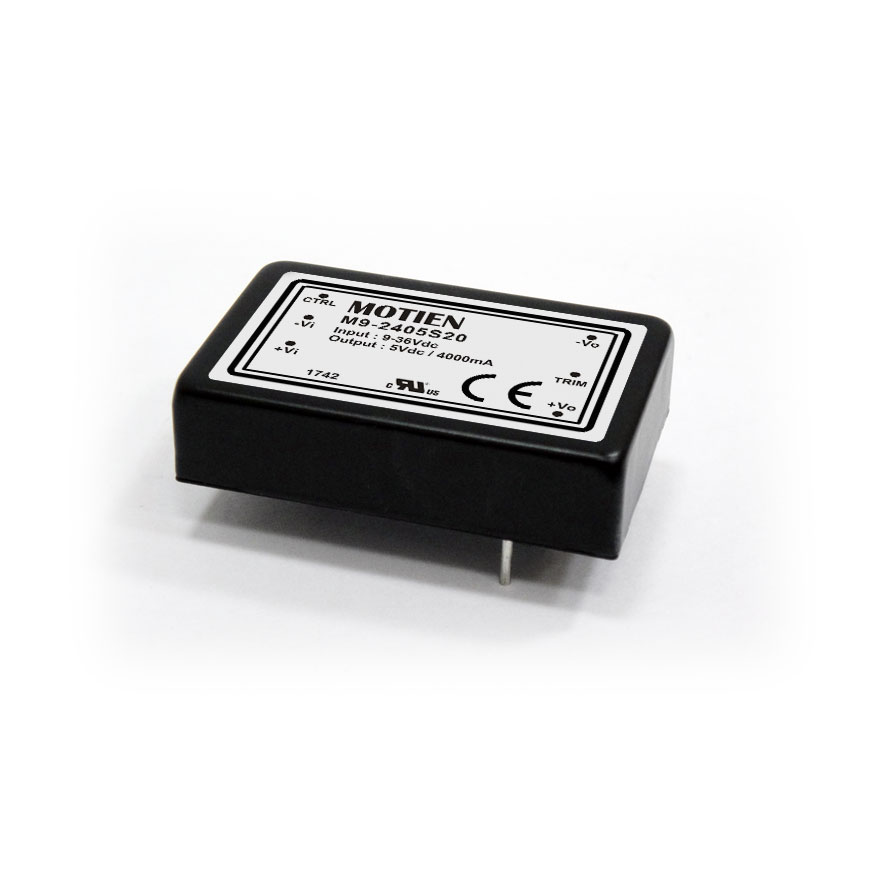

M9系列是具成本效率的20W单/双输出直流对直流电源转换器。M9-20W 系列为金属1.6"x1"外壳包装，具备连续短路保护,自动重启与高线变动率/负载变动率。使用不易燃树脂，输入电压24, 48 Vdc.，输出电压3.3, 5, 12, 15, ±5, ±12, ±15 Vdc.，效率高达91%，输出电压准确度最高可达±1%。
● 宽范围4:1输入
● 3000 VDC 隔离电压
● 无须最低负载
● 效率高达 91%
● 延伸的操作温度范围 -40°C ~+100°C
● 输出电压可调
● 遥控开关装置 (CTRL)
● 连续短路保护
● 过载保护
● 过电压保护
● 软性启动
● 无需外部组件即可符合EMC EN55032 Class A法规
Download
| No. | Title | Download |
|---|---|---|
| 1 | M9-20W DATASHEET | |
| 2 | M9-20W CE_EN55032 55024 55035 | |
| 3 | M9-20W CB IEC 60950-1 | |
| 4 | M9-20W CB IEC 62368-1 | |
| 5 | M9-20W UL 60950-1 62368-1 | |
| 6 | M9 SERIES ROHS | |
| 7 | M9-20W EU Doc | |
| 8 | M9-20W UK Doc |
| 型号 | 输出功率 | 输入电压范围(VDC) | 输出电压(VDC) | 输出电流 | 包装 |
|---|---|---|---|---|---|
| M9-243R3S20 | 18W | 9-36 | 3.3 | 5500 | 1.6×1(15-20W) |
| M9-2405S20 | 20W | 9-36 | 5 | 4000 | 1.6×1(15-20W) |
| M9-2412S20 | 20W | 9-36 | 12 | 1670 | 1.6×1(15-20W) |
| M9-2415S20 | 20W | 9-36 | 15 | 1330 | 1.6×1(15-20W) |
| M9-483R3S20 | 18W | 18-75 | 3.3 | 5500 | 1.6×1(15-20W) |
| M9-4805S20 | 20W | 18-75 | 5 | 4000 | 1.6×1(15-20W) |
| M9-4812S20 | 20W | 18-75 | 12 | 1670 | 1.6×1(15-20W) |
| M9-4815S20 | 20W | 18-75 | 15 | 1330 | 1.6×1(15-20W) |
| M9-2405D20 | 20W | 9-36 | ±5 | ±2000 | 1.6×1(15-20W) |
| M9-2412D20 | 20W | 9-36 | ±12 | ±835 | 1.6×1(15-20W) |
| M9-2415D20 | 20W | 9-36 | ±15 | ±665 | 1.6×1(15-20W) |
| M9-4805D20 | 20W | 18-75 | ±5 | ±2000 | 1.6×1(15-20W) |
| M9-4812D20 | 20W | 18-75 | ±12 | ±835 | 1.6×1(15-20W) |
| M9-4815D20 | 20W | 18-75 | ±15 | ±665 | 1.6×1(15-20W) |
