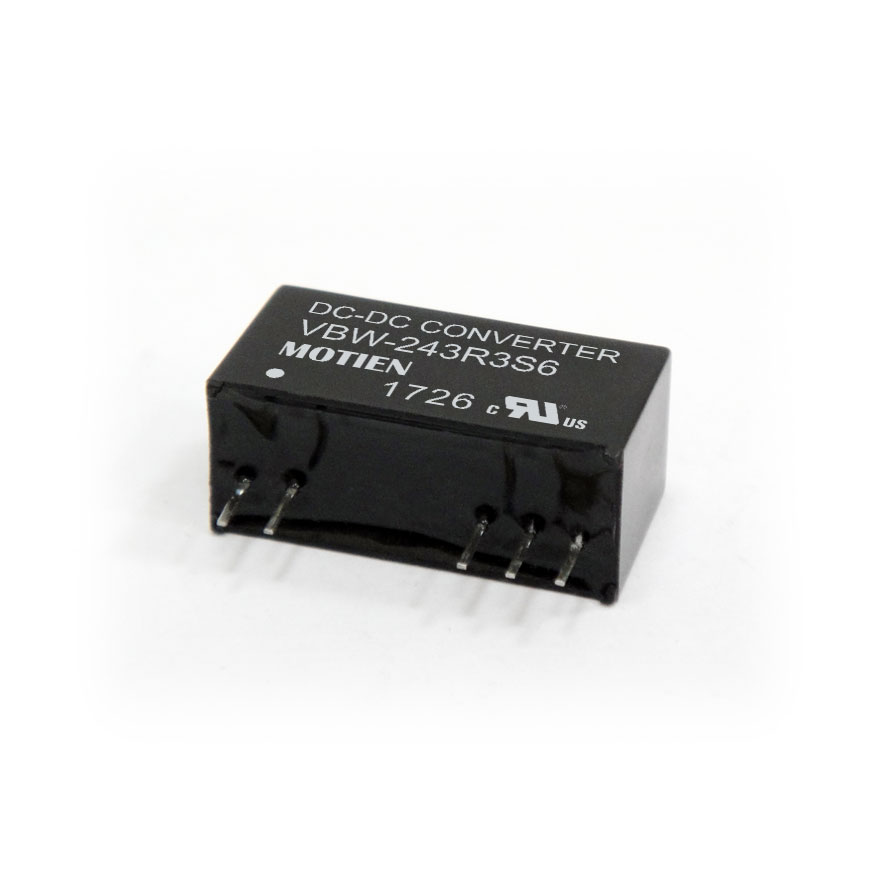

VBW-6W Series
6W 4:1 Regulated Single & Dual output
The VBW-6W series is a family of high performanced 6W single & dual output DC-DC converters. These converters are built in non-conductive black plastic package in a 8-pin SIL miniature compact case with high performance features wide range devices operate over 4:1 input voltage range providing stable output voltage which is much smaller than package of DIL 24- Same power rating but only 43% of the traditional volume. Devices are encapsulated using flame retardant resin. Input voltages are 24 and 48VDC with output voltage of 3.3, 5, 9, 12, 15, 24, ±5, ±12, ±15 VDC. Featuring new PWM construction, no minimum load required and precise 1% output voltage accuracy.
● Highest Power Density In 8 Pin SIL Package
● Wide 4:1 Input Range
● Smallest Footprint 6W Converter
● 1500 VDC Isolation, Up to 3000VDC ( Optional )
● Continuous Short Circuit Protection
● Efficiency up to 88%
● Operation Temperature Range -40 ~ 97°C max.
● Remote ON/OFF Control
Download
| No. | Title | Download |
|---|---|---|
| 1 | VBW-6W DATASHEET | |
| 2 | VBW-6W CE_EN55032 55024 55035 | |
| 3 | VBW-6W CB_IEC 60950-1 | |
| 4 | VBW-6W CB_IEC 62368-1 | |
| 5 | VBW-6W UL 60950-1 62368-1 | |
| 6 | VBW SERIES ROHS | |
| 7 | VBW-6W EU DoC | |
| 8 | VBW-6W UK DoC |
| Model No. | Output Power | Input Voltage | Output Voltage | Output Current(mA) | Package |
|---|---|---|---|---|---|
| VBW-243R3S6 | 4.65W | 9-36 | 3.3 | 1500 | SIP8 |
| VBW-2405S6 | 6W | 9-36 | 5 | 1200 | SIP8 |
| VBW-2409S6 | 6W | 9-36 | 9 | 666 | SIP8 |
| VBW-2412S6 | 6W | 9-36 | 12 | 500 | SIP8 |
| VBW-2415S6 | 6W | 9-36 | 15 | 400 | SIP8 |
| VBW-2424S6 | 6W | 9-36 | 24 | 250 | SIP8 |
| VBW-2405SD6 | 6W | 9-36 | ±5 | ±600 | SIP8 |
| VBW-2412SD6 | 6W | 9-36 | ±12 | ±250 | SIP8 |
| VBW-2415SD6 | 6W | 9-36 | ±15 | ±200 | SIP8 |
| VBW-483R3S6 | 4.65W | 18-75 | 3.3 | 1500 | SIP8 |
| VBW-4805S6 | 6W | 18-75 | 5 | 1200 | SIP8 |
| VBW-4809S6 | 6W | 18-75 | 9 | 666 | SIP8 |
| VBW-4812S6 | 6W | 18-75 | 12 | 500 | SIP8 |
| VBW-4815S6 | 6W | 18-75 | 15 | 400 | SIP8 |
| VBW-4824S6 | 6W | 18-75 | 24 | 250 | SIP8 |
| VBW-4805SD6 | 6W | 18-75 | ±5 | ±600 | SIP8 |
| VBW-4812SD6 | 6W | 18-75 | ±12 | ±250 | SIP8 |
| VBW-4815SD6 | 6W | 18-75 | ±15 | ±200 | SIP8 |
