PRODUCT

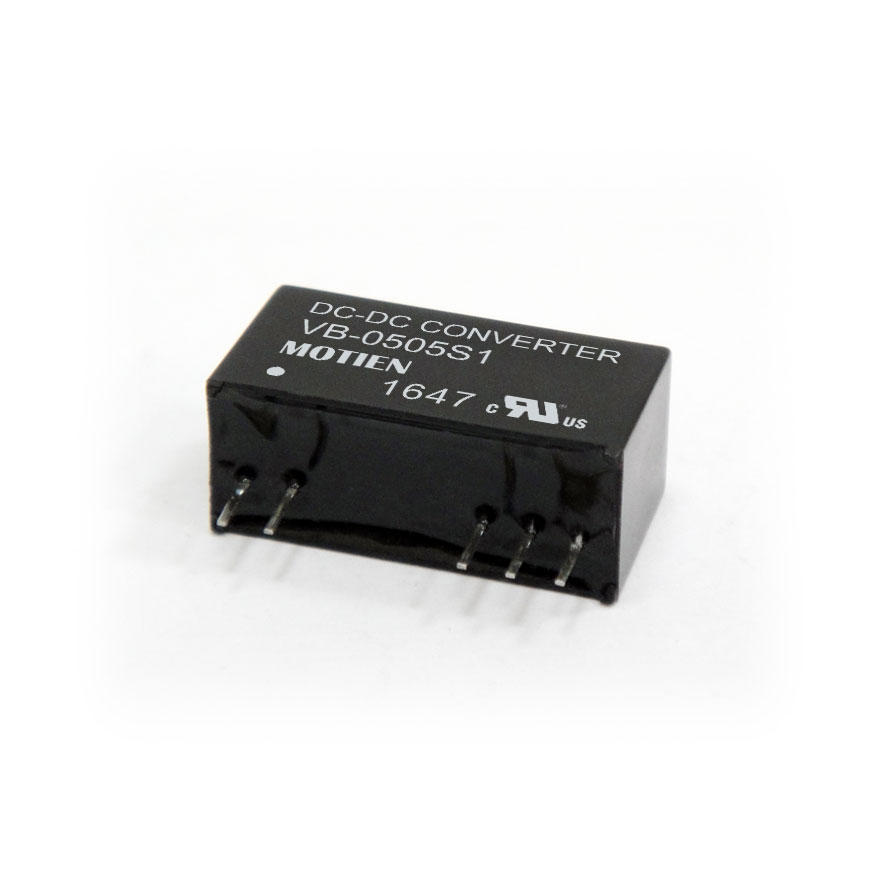

VB-1W Series
1W 2:1 Regulated Single & Dual output
The VB-1W series is a family of cost effective 1W single & dual output DC-DC converters. These converters combine non-conductive black plastic case in a 8-pin SIL or 16-pin DIL package with high performance features such as 1000 ~ 3000 VDC input / output isolation voltage, continuous short circuit protection with automatic restart and hight line / load regulation. Devices are encapsulated using flame retardant resin. Input voltages of 5, 12, 24 and 48 with output voltage of 3.3, 5,9, 12, 15, 24, ±3.3, ±5, ±9, ±12, ±15, ±24 VDC. High performance features include high efficiency operation up to 7\67% and output voltage accuracy of ±2% maximum.
● SIP8 / DIP16
● Wide 2:1 Input Range
● 1000 VDC Isolation, Up to 3000 VDC
● Continuous Short Circuit Protection
● Efficiency up to 76%
● Operation Temperature Range -40 ~ 99°C max.
● Plastic Case Standard
● Remote ON/OFF Control ( Optional )
Download
| No. | Title | Download |
|---|---|---|
| 1 | VB-1W DATASHEET | |
| 2 | VB-1W CE_EN55032 55024 55035 | |
| 3 | VB-1W CB_IEC 60950-1 | |
| 4 | VB-1W CB_IEC 62368-1 | |
| 5 | VB-1W FCC | |
| 6 | VB-1W UL 60950-1 62368-1 | |
| 7 | VB SERIES ROHS | |
| 8 | VB-1W EU DoC | |
| 9 | VB-1W UK DoC |
Suffix “H” means 3 KVdc isolation；Suffix “C” means with control pin；Suffix “M” means with Metal Case
| Model No. | Output Power | Input Voltage | Output Voltage | Output Current(mA) | Package |
|---|---|---|---|---|---|
| VB-053R3S1 | 1W | 4.5-9 | 3.3 | 303 | SIP 8 |
| VB-0505S1 | 1W | 4.5-9 | 5 | 200 | SIP 8 |
| VB-0509S1 | 1W | 4.5-9 | 9 | 111 | SIP 8 |
| VB-0512S1 | 1W | 4.5-9 | 12 | 83 | SIP 8 |
| VB-0515S1 | 1W | 4.5-9 | 15 | 67 | SIP 8 |
| VB-0524S1 | 1W | 4.5-9 | 24 | 42 | SIP 8 |
| VB-123R3S1 | 1W | 9-18 | 3.3 | 303 | SIP 8 |
| VB-1205S1 | 1W | 9-18 | 5 | 200 | SIP 8 |
| VB-1209S1 | 1W | 9-18 | 9 | 111 | SIP 8 |
| VB-1212S1 | 1W | 9-18 | 12 | 83 | SIP 8 |
| VB-1215S1 | 1W | 9-18 | 15 | 67 | SIP 8 |
| VB-1224S1 | 1W | 9-18 | 24 | 42 | SIP 8 |
| VB-243R3S1 | 1W | 18-36 | 3.3 | 303 | SIP 8 |
| VB-2405S1 | 1W | 18-36 | 5 | 200 | SIP 8 |
| VB-2409S1 | 1W | 18-36 | 9 | 111 | SIP 8 |
| VB-2412S1 | 1W | 18-36 | 12 | 83 | SIP 8 |
| VB-2415S1 | 1W | 18-36 | 15 | 67 | SIP 8 |
| VB-2424S1 | 1W | 18-36 | 24 | 42 | SIP 8 |
| VB-483R3S1 | 1W | 36-72 | 3.3 | 303 | SIP 8 |
| VB-4805S1 | 1W | 36-72 | 5 | 200 | SIP 8 |
| VB-4809S1 | 1W | 36-72 | 9 | 111 | SIP 8 |
| VB-4812S1 | 1W | 36-72 | 12 | 83 | SIP 8 |
| VB-4815S1 | 1W | 36-72 | 15 | 67 | SIP 8 |
| VB-4824S1 | 1W | 36-72 | 24 | 42 | SIP 8 |
