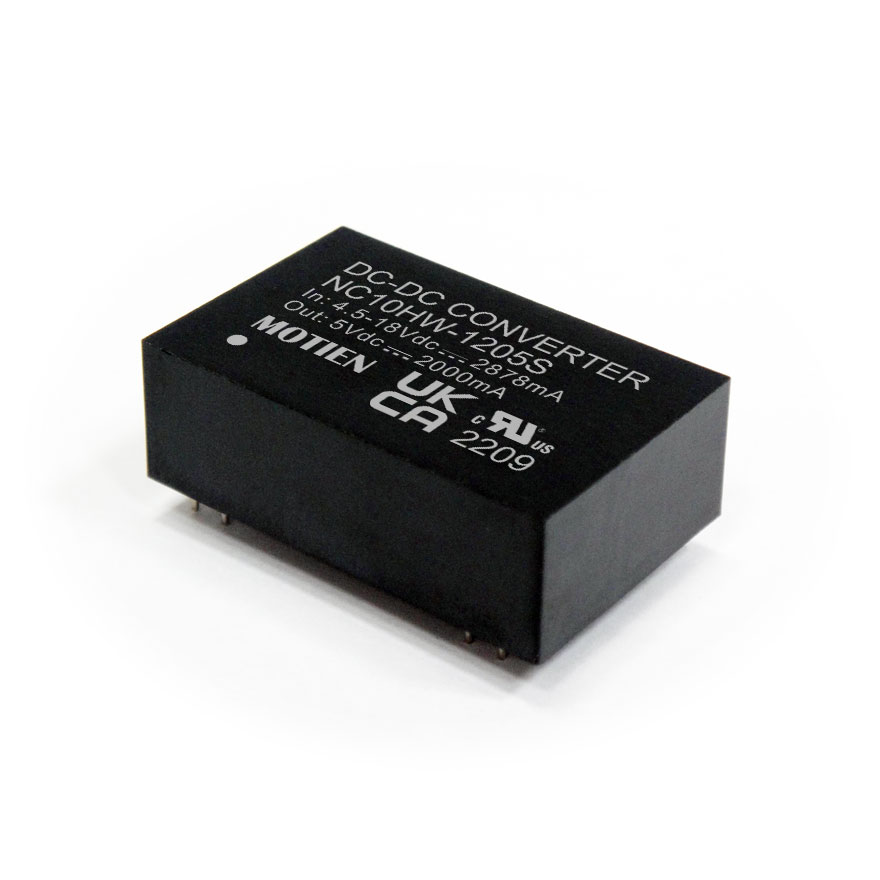

NC10HW系列
10W 稳压单 / 双输出
NC10HW 系列为具成本效率的10W单 / 双输出直流对直流电源转换器，DIP24绝缘黑色塑料外壳包装，4:1输入电压范围提供稳定输出电压。使用不易燃树脂。输入电压12, 24, 48 VDC，输出电压5, 12, 15, ±5, ±12, ±15 VDC。具高达89%的效率，输出电压准确度最高达±1%。
● 加强型绝缘、额定工作电压250 Vrms
● DIP24 包装
● 宽范围4:1输入
● 5000 VAC 隔离电压
● 过电压保护
● 过电流保护
● 连续短路保护
● 遥控开关装置
● 低电压保护
● 软性启动
● 无须最低负载
● 效率高达 89%
● 操作温度范围 -40°C ~ 100°C
Download
| No. | Title | Download |
|---|---|---|
| 1 | NC10HW DATASHEET | |
| 2 | NC10HW CE_EN 55032 55024 55035 | |
| 3 | NC10HW CB_IEC 62368-1 | |
| 4 | NC10HW UL 62368-1 | |
| 5 | NC10HW EU Doc | |
| 6 | NC10HW UK Doc |
| 型号 | 输出功率 | 输入电压范围(VDC) | 输出电压(VDC) | 输出电流 | 包装 |
|---|---|---|---|---|---|
| NC10HW-1205S | 10W | 12 (4.5-18) | 5 | 2000 | DIP 24 |
| NC10HW-1212S | 10W | 12 (4.5-18) | 12 | 833 | DIP 24 |
| NC10HW-1215S | 10W | 12 (4.5-18) | 15 | 666 | DIP 24 |
| NC10HW-1205D | 10W | 12 (4.5-18) | ±5 | ±1000 | DIP 24 |
| NC10HW-1212D | 10W | 12 (4.5-18) | ±12 | ±416 | DIP 24 |
| NC10HW-1215D | 10W | 12 (4.5-18) | ±15 | ±333 | DIP 24 |
| NC10HW-2405S | 10W | 24 (9-36) | 5 | 2000 | DIP 24 |
| NC10HW-2412S | 10W | 24 (9-36) | 12 | 833 | DIP 24 |
| NC10HW-2415S | 10W | 24 (9-36) | 15 | 666 | DIP 24 |
| NC10HW-2405D | 10W | 24 (9-36) | ±5 | ±1000 | DIP 24 |
| NC10HW-2412D | 10W | 24 (9-36) | ±12 | ±416 | DIP 24 |
| NC10HW-2415D | 10W | 24 (9-36) | ±15 | ±333 | DIP 24 |
| NC10HW-4805S | 10W | 48 (18-75) | 5 | 2000 | DIP 24 |
| NC10HW-4812S | 10W | 48 (18-75) | 12 | 833 | DIP 24 |
| NC10HW-4815S | 10W | 48 (18-75) | 15 | 666 | DIP 24 |
| NC10HW-4805D | 10W | 48 (18-75) | ±5 | ±1000 | DIP 24 |
| NC10HW-4812D | 10W | 48 (18-75) | ±12 | ±416 | DIP 24 |
| NC10HW-4815D | 10W | 48 (18-75) | ±15 | ±333 | DIP 24 |
