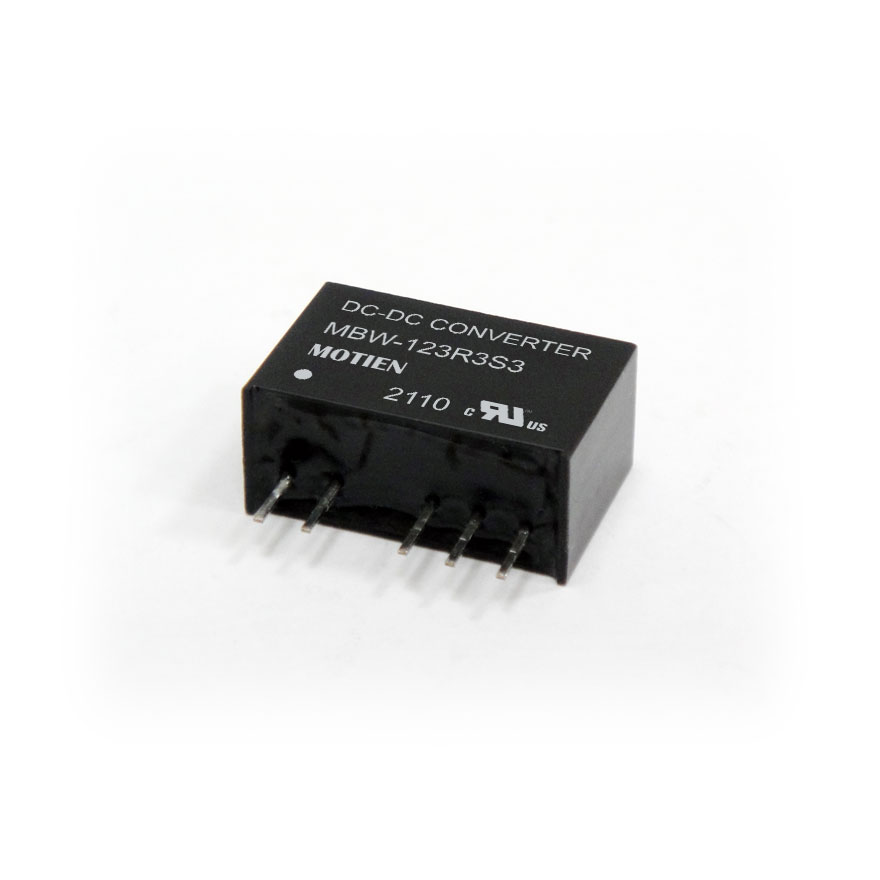

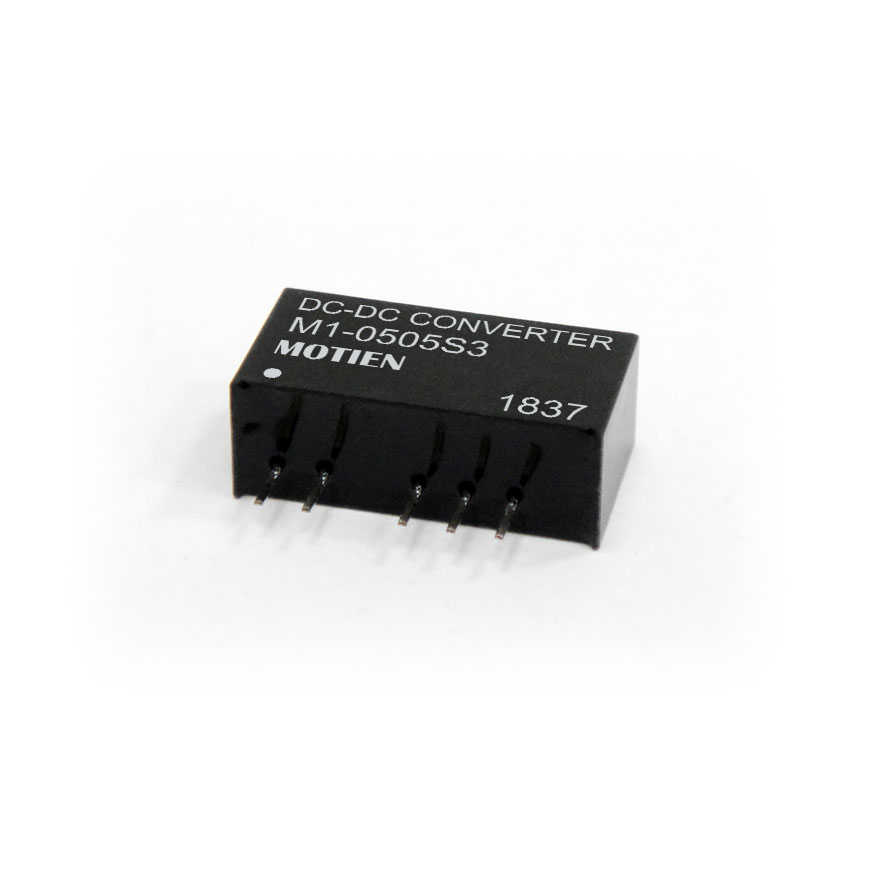

MBW-3W Series
3W 4:1 稳压单/双输出
MBW系列为具成本效率的3W单/双输出直流对直流电源转换器。MBW-3W 系列为绝缘黑色塑料外壳包装，为4:1稳压宽输入范围产品提供稳定的输出电压。使用不易燃树脂，输入电压为12, 24, 48 Vdc.，输出电压为3.3, 5, 12, 15, ±5, ±12, ±15 Vdc.，效率高达84%，输出电压准确度最高可达±1%。
● 高功率密度单排六脚包装
● 4:1 宽输入范围
● 体积最小的3W转换器
● 内部 SMD 构造
● 1600 VDC 隔离电压
● 连续短路保护
● 输入低电压关断设计
● 效率高达 84%
● 操作温度范围 -40 ~ 76°C
Download
| No. | Title | Download |
|---|---|---|
| 1 | MBW-3W DATASHEET | |
| 2 | MBW-3W CE_EN55032 55024 55035 | |
| 3 | MBW-3W CB_IEC 60950-1 | |
| 4 | MBW-3W CB_IEC 62368-1 | |
| 5 | MBW-3W UL 62368-1 | |
| 6 | MBW SERIES ROHS | |
| 7 | MBW-3W EU Doc | |
| 8 | MBW-3W UK Doc |
| 型号 | 输出功率 | 输入电压范围(VDC) | 输出电压(VDC) | 输出电流 | 包装 |
|---|---|---|---|---|---|
| MBW-123R3S3 | 3W | 12 ( 4.5-18 ) | 3.3 | 700 | SIP 6 |
| MBW-1205S3 | 3W | 12 ( 4.5-18 ) | 5 | 600 | SIP 6 |
| MBW-1212S3 | 3W | 12 ( 4.5-18 ) | 12 | 250 | SIP 6 |
| MBW-1215S3 | 3W | 12 ( 4.5-18 ) | 15 | 200 | SIP 6 |
| MBW-1205D3 | 3W | 12 ( 4.5-18 ) | ±5 | ±300 | SIP 6 |
| MBW-1212D3 | 3W | 12 ( 4.5-18 ) | ±12 | ±125 | SIP 6 |
| MBW-1215D3 | 3W | 12 ( 4.5-18 ) | ±15 | ±100 | SIP 6 |
| MBW-243R3S3 | 3W | 24 ( 9-36 ) | 3.3 | 700 | SIP 6 |
| MBW-2405S3 | 3W | 24 ( 9-36 ) | 5 | 600 | SIP 6 |
| MBW-2412S3 | 3W | 24 ( 9-36 ) | 12 | 250 | SIP 6 |
| MBW-2415S3 | 3W | 24 ( 9-36 ) | 15 | 200 | SIP 6 |
| MBW-2405D3 | 3W | 24 ( 9-36 ) | ±5 | ±300 | SIP 6 |
| MBW-2412D3 | 3W | 24 ( 9-36 ) | ±12 | ±125 | SIP 6 |
| MBW-2415D3 | 3W | 24 ( 9-36 ) | ±15 | ±100 | SIP 6 |
| MBW-483R3S3 | 3W | 48 ( 18-75 ) | 3.3 | 700 | SIP 6 |
| MBW-4805S3 | 3W | 48 ( 18-75 ) | 5 | 600 | SIP 6 |
| MBW-4812S3 | 3W | 48 ( 18-75 ) | 12 | 250 | SIP 6 |
| MBW-4815S3 | 3W | 48 ( 18-75 ) | 15 | 200 | SIP 6 |
| MBW-4805D3 | 3W | 48 ( 18-75 ) | ±5 | ±300 | SIP 6 |
| MBW-4812D3 | 3W | 48 ( 18-75 ) | ±12 | ±125 | SIP 6 |
| MBW-4815D3 | 3W | 48 ( 18-75 ) | ±15 | ±100 | SIP 6 |
