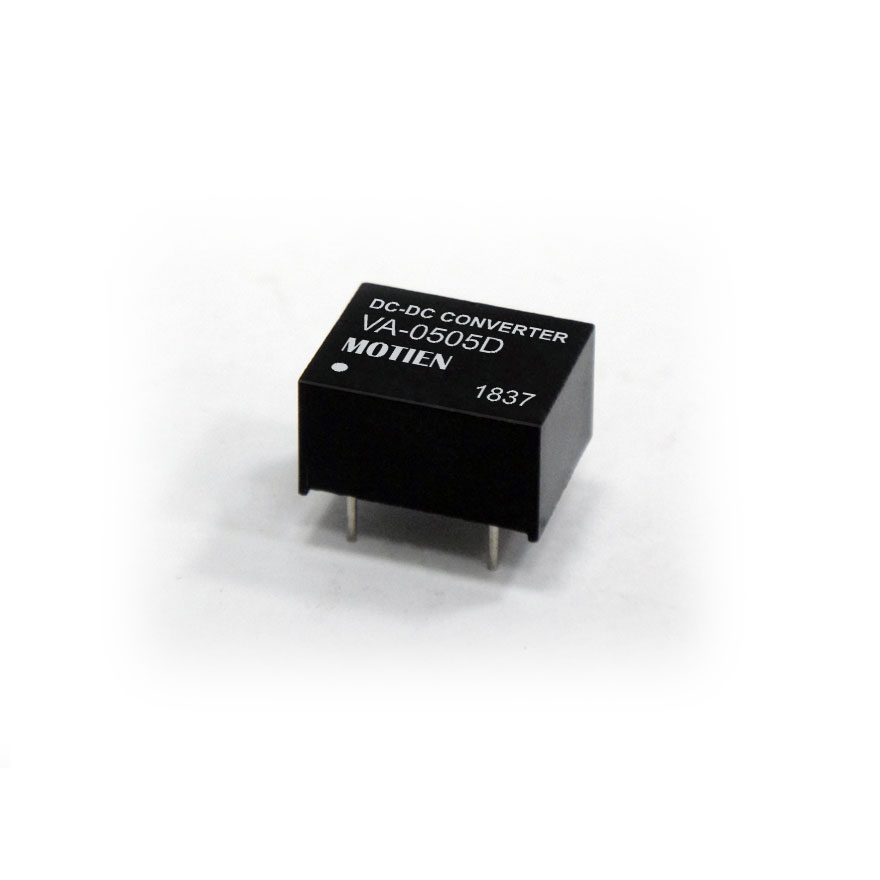

VA-0.5W 系列
0.5W 非稳压单输出
VA 系列是具有成本效率的0.5W单/双输出直流对直流电源转换器。VA-0.5W系列为低成本产品，包装为SIP4与DIP8，使用不易燃树脂。输入电压为3.3, 5, 12, 15, 24 Vdc.，输出电压为 3.3, 5,7.2, 9, 12,15, 18, 24 Vdc.。包含高性能1000 Vdc.~3000 Vdc. 输入/输出隔离电压，输出电压准确度最高可达±3%。产品皆具备输入范围±10%公差与低连波噪声。
● 双排八脚 / 单排四脚包装
● 1000 VDC 至3000 VDC 之隔离电压
● 低连波噪声
● 效率高达 83%
● 操作温度范围 -40°C ~+85°C
● 绝缘黑色塑料外壳
● 电磁干扰验证通过EN55032 Class B
Download
| No. | Title | Download |
|---|---|---|
| 1 | VA-0.5W DATASHEET | |
| 2 | VA-0.5W-DIP CE_EN55032 24 35 | |
| 3 | VA SERIES ROHS | |
| 4 | VA-0.5W-DIP EU Doc | |
| 5 | VA-0.5W-DIP UK Doc |
H字尾为 3 K Vdc 隔离
| 型号 | 输出功率 | 输入电压范围(VDC) | 输出电压(VDC) | 输出电流 | 包装 |
|---|---|---|---|---|---|
| VA-3R33R3D | 0.5W | 3.3 | 3.3 | 152 | DIP 8 |
| VA-3R305D | 0.5W | 3.3 | 5 | 100 | DIP 8 |
| VA-3R37R2D | 0.5W | 3.3 | 7.2 | 69 | DIP 8 |
| VA-3R309D | 0.5W | 3.3 | 9 | 56 | DIP 8 |
| VA-3R312D | 0.5W | 3.3 | 12 | 42 | DIP 8 |
| VA-3R315D | 0.5W | 3.3 | 15 | 33 | DIP 8 |
| VA-3R318D | 0.5W | 3.3 | 18 | 28 | DIP 8 |
| VA-3R324D | 0.5W | 3.3 | 24 | 21 | DIP 8 |
| VA-053R3D | 0.5W | 5 | 3.3 | 151.5 | DIP 8 |
| VA-0505D | 0.5W | 5 | 5 | 100 | DIP 8 |
| VA-057R2D | 0.5W | 5 | 7.2 | 69.44 | DIP 8 |
| VA-0509D | 0.5W | 5 | 9 | 55.55 | DIP 8 |
| VA-0512D | 0.5W | 5 | 12 | 41.67 | DIP 8 |
| VA-0515D | 0.5W | 5 | 15 | 33.33 | DIP 8 |
| VA-0518D | 0.5W | 5 | 18 | 27.77 | DIP 8 |
| VA-0524D | 0.5W | 5 | 24 | 20.83 | DIP 8 |
| VA-123R3D | 0.5W | 12 | 3.3 | 151.5 | DIP 8 |
| VA-1205D | 0.5W | 12 | 5 | 100 | DIP 8 |
| VA-127R2D | 0.5W | 12 | 7.2 | 69.44 | DIP 8 |
| VA-1209D | 0.5W | 12 | 9 | 55.56 | DIP 8 |
| VA-1212D | 0.5W | 12 | 12 | 41.67 | DIP 8 |
| VA-1215D | 0.5W | 12 | 15 | 33.33 | DIP 8 |
| VA-1218D | 0.5W | 12 | 18 | 27.77 | DIP 8 |
| VA-1224D | 0.5W | 12 | 24 | 20.83 | DIP 8 |
| VA-153R3D | 0.5W | 15 | 3.3 | 151.5 | DIP 8 |
| VA-1505D | 0.5W | 15 | 5 | 100 | DIP 8 |
| VA-157R2D | 0.5W | 15 | 7.2 | 69.44 | DIP 8 |
| VA-1509D | 0.5W | 15 | 9 | 55.55 | DIP 8 |
| VA-1512D | 0.5W | 15 | 12 | 41.67 | DIP 8 |
| VA-1515D | 0.5W | 15 | 15 | 33.33 | DIP 8 |
| VA-1518D | 0.5W | 15 | 18 | 27.77 | DIP 8 |
| VA-1524D | 0.5W | 15 | 24 | 20.83 | DIP 8 |
| VA-243R3D | 0.5W | 24 | 3.3 | 151.5 | DIP 8 |
| VA-2405D | 0.5W | 24 | 5 | 100 | DIP 8 |
| VA-247R2D | 0.5W | 24 | 7.2 | 69.44 | DIP 8 |
| VA-2409D | 0.5W | 24 | 9 | 55.55 | DIP 8 |
| VA-2412D | 0.5W | 24 | 12 | 41.67 | DIP 8 |
| VA-2415D | 0.5W | 24 | 15 | 33.33 | DIP 8 |
| VA-2418D | 0.5W | 24 | 18 | 27.77 | DIP 8 |
| VA-2424D | 0.5W | 24 | 24 | 20.83 | DIP 8 |
