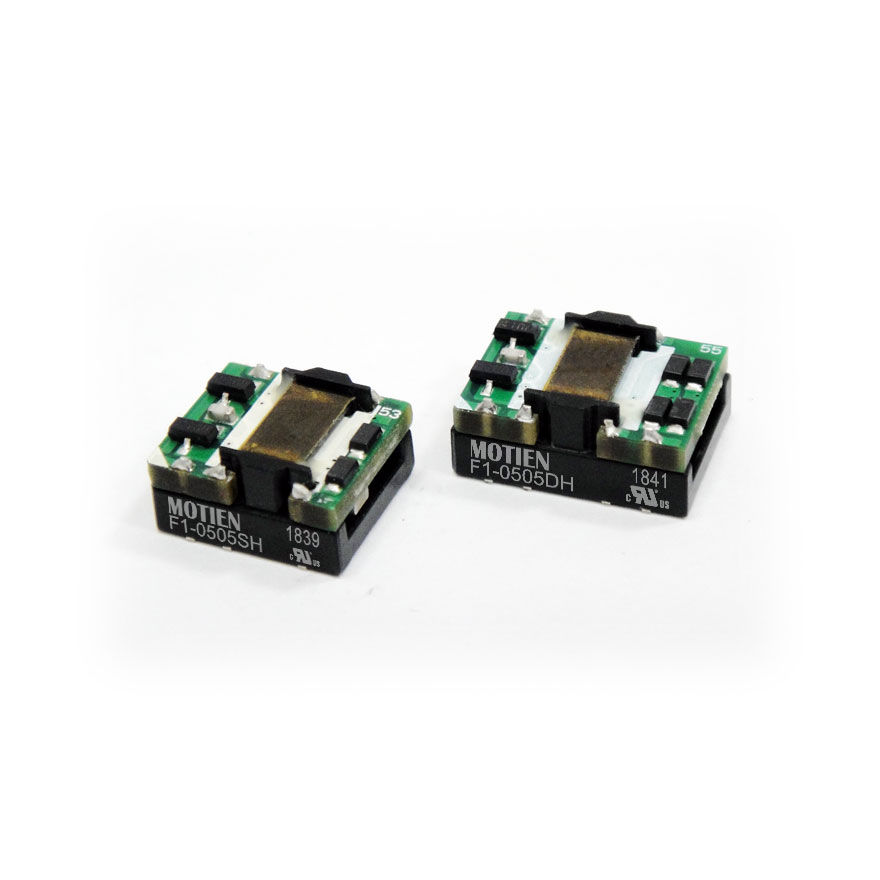

F1-1W Series

1W Unregulated Single & Dual output

The F1 series is a family of cost effective 1W single & dual output DC-DC converters. These converters achieve low cost and Small SMD package with standard footprint. High performance features include 4200Vdc input/output isolation. Input voltages are 3.3V, 5Vdc. with output voltage of 3.3, 5, ±3.3, ±5Vdc. Standard features include an input range of ±10% tolerance and low output noise and ripple.



● SMD 8Pin / 10Pin Package
● 4200 VDC High Isolation
● Efficiency up to 78%
● -40 ~ 105°C Operation Temperature Range
● Rated working voltage for 250Vrms and 400Vdc
● Low coupling capacity
● Qualified for Lead-free Reflow Solder Process According to IPC/JEDEC J-STD-020D.1
● Tape & Reel Package Available

Download

No. Title Download
1 F1-1W DATASHEET
2 F1-1W CB_IEC 60950-1
3 F1-1W CB_IEC 62368-1
4 F1-1W CE_EN 55032 55024
5 F1-1W UL 60950-1 62368-1
6 F1-1W ROHS
Model No. Output Power Input Voltage Output Voltage Output Current(mA) Package
F1-0303SH 1W 3.3 ( 2.97 ~ 3.63 ) 3.3 303 SMD
F1-0305SH 1W 3.3 ( 2.97 ~ 3.63 ) 5 200 SMD
F1-0503SH 1W 5 ( 4.5 ~ 5.5 ) 3.3 303 SMD
F1-0505SH 1W 5 ( 4.5 ~ 5.5 ) 5 200 SMD
F1-0303SH-R 1W 3.3 ( 2.97 ~ 3.63 ) 3.3 303 SMD
F1-0305SH-R 1W 3.3 ( 2.97 ~ 3.63 ) 5 200 SMD
F1-0503SH-R 1W 5 ( 4.5 ~ 5.5 ) 3.3 303 SMD
F1-0505SH-R 1W 5 ( 4.5 ~ 5.5 ) 5 200 SMD
F1-0303DH 1W 3.3 ( 2.97 ~ 3.63 ) ±3.3 ±151 SMD
F1-0305DH 1W 3.3 ( 2.97 ~ 3.63 ) ±5 ±100 SMD
F1-0503DH 1W 5 ( 4.5 ~ 5.5 ) ±3.3 ±151 SMD
F1-0505DH 1W 5 ( 4.5 ~ 5.5 ) ±5 ±100 SMD
F1-0303DH-R 1W 3.3 ( 2.97 ~ 3.63 ) ±3.3 ±151 SMD
F1-0305DH-R 1W 3.3 ( 2.97 ~ 3.63 ) ±5 ±100 SMD
F1-0503DH-R 1W 5 ( 4.5 ~ 5.5 ) ±3.3 ±151 SMD
F1-0505DH-R 1W 5 ( 4.5 ~ 5.5 ) ±5 ±100 SMD
