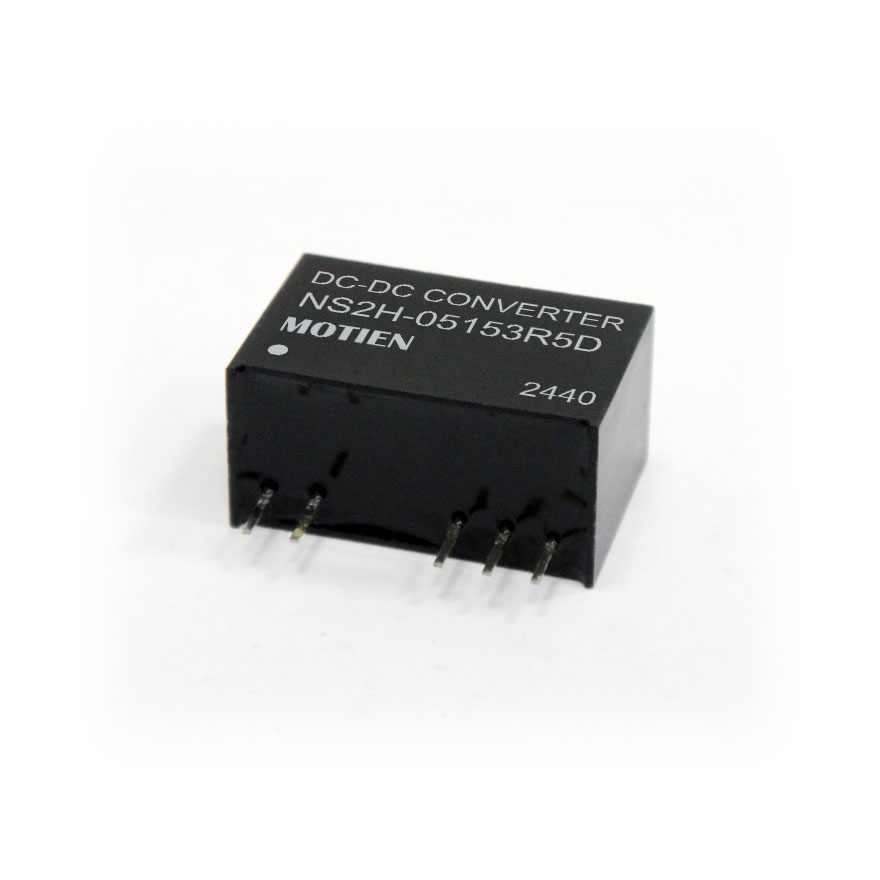

NS2H Series
2W Unregulated Dual output
These converters has continuous short circuit protection with efficiency up to 86%. The models operate from input voltage of +15/-3.5, +15/-5, +18/-3.5, +18/-5, +20/-3.5, +20/-5 Vdc. High performance features include 5000 Vac input / output isolation, output voltage accuracy of ±3% maximum. Standard features include an input range of ±10% tolerance.
● SIP7 Package
● Ultra High I/O Isolation 5000 VAC with Reinforced Insulation, rated for 300 Vrms working Voltage
● CMTI 100 KV/μ s at 1.5 KV Common mode Voltage
● Low coupling capacitance
● Continuous Short Circuit Protection
● Over Load Protection
● Efficiency up to 86%
● 40 ~ 95 °C Operation Temperature Range
● Suitable for IG BT and SiC applications
● Input Under Voltage Protection and Over Voltage Protection
● "X" Option for Input / Output Clearance > 8.2mm with alternative pinout
| Model No. | Output Power | Input Voltage | Output Voltage | Output Current(mA) | Package |
|---|---|---|---|---|---|
| NS2H-05153R5D | 2W | 4.5-5.5 | +15 / -3.5 | +66 / -300, +100 /-140 | SIP 7 |
| NS2H-051505D | 2W | 4.5-5.5 | +15 / -5 | +66 / -200, +100 /-80 | SIP 7 |
| NS2H-05183R5D | 2W | 4.5-5.5 | +18 / -3.5 | +55 / -300, +80 /-140 | SIP 7 |
| NS2H-051805D | 2W | 4.5-5.5 | +18 / -5 | +55 / -200, +80 /-80 | SIP 7 |
| NS2H-05203R5D | 2W | 4.5-5.5 | +20 / -3.5 | +50 / -300, +80 /-140 | SIP 7 |
| NS2H-052005D | 2W | 4.5-5.5 | +20 / -5 | +50 / -200, +80 /-80 | SIP 7 |
| NS2H-12153R5D | 2W | 10.8-13.2 | +15 / -3.5 | +66 / -300, +100 /-140 | SIP 7 |
| NS2H-121505D | 2W | 10.8-13.2 | +15 / -5 | +66 / -200, +100 /-80 | SIP 7 |
| NS2H-12183R5D | 2W | 10.8-13.2 | +18 / -3.5 | +55 / -300, +80 /-140 | SIP 7 |
| NS2H-121805D | 2W | 10.8-13.2 | +18 / -5 | +55 / -200, +80 /-80 | SIP 7 |
| NS2H-12203R5D | 2W | 10.8-13.2 | +20 / -3.5 | +50 / -300, +80 /-140 | SIP 7 |
| NS2H-122005D | 2W | 10.8-13.2 | +20 / -5 | +50 / -200, +80 /-80 | SIP 7 |
| NS2H-15153R5D | 2W | 13.5-16.5 | +15 / -3.5 | +66 / -300, +100 /-140 | SIP 7 |
| NS2H-151505D | 2W | 13.5-16.5 | +15 / -5 | +66 / -200, +100 /-80 | SIP 7 |
| NS2H-15183R5D | 2W | 13.5-16.5 | +18 / -3.5 | +55 / -300, +80 /-140 | SIP 7 |
| NS2H-151805D | 2W | 13.5-16.5 | +18 / -5 | +55 / -200, +80 /-80 | SIP 7 |
| NS2H-15203R5D | 2W | 13.5-16.5 | +20 / -3.5 | +50 / -300, +80 /-140 | SIP 7 |
| NS2H-152005D | 2W | 13.5-16.5 | +20 / -5 | +50 / -200, +80 /-80 | SIP 7 |
| NS2H-24153R5D | 2W | 21.6-26.4 | +15 / -3.5 | +66 / -300, +100 /-140 | SIP 7 |
| NS2H-241505D | 2W | 21.6-26.4 | +15 / -5 | +66 / -200, +100 /-80 | SIP 7 |
| NS2H-24183R5D | 2W | 21.6-26.4 | +18 / -3.5 | +55 / -300, +80 /-140 | SIP 7 |
| NS2H-241805D | 2W | 21.6-26.4 | +18 / -5 | +55 / -200, +80 /-80 | SIP 7 |
| NS2H-24203R5D | 2W | 21.6-26.4 | +20 / -3.5 | +50 / -300, +80 /-140 | SIP 7 |
| NS2H-242005D | 2W | 21.6-26.4 | +20 / -5 | +50 / -200, +80 /-80 | SIP 7 |
