NB3R5HW Series
3.5W 4:1 Regulated Single & Dual output

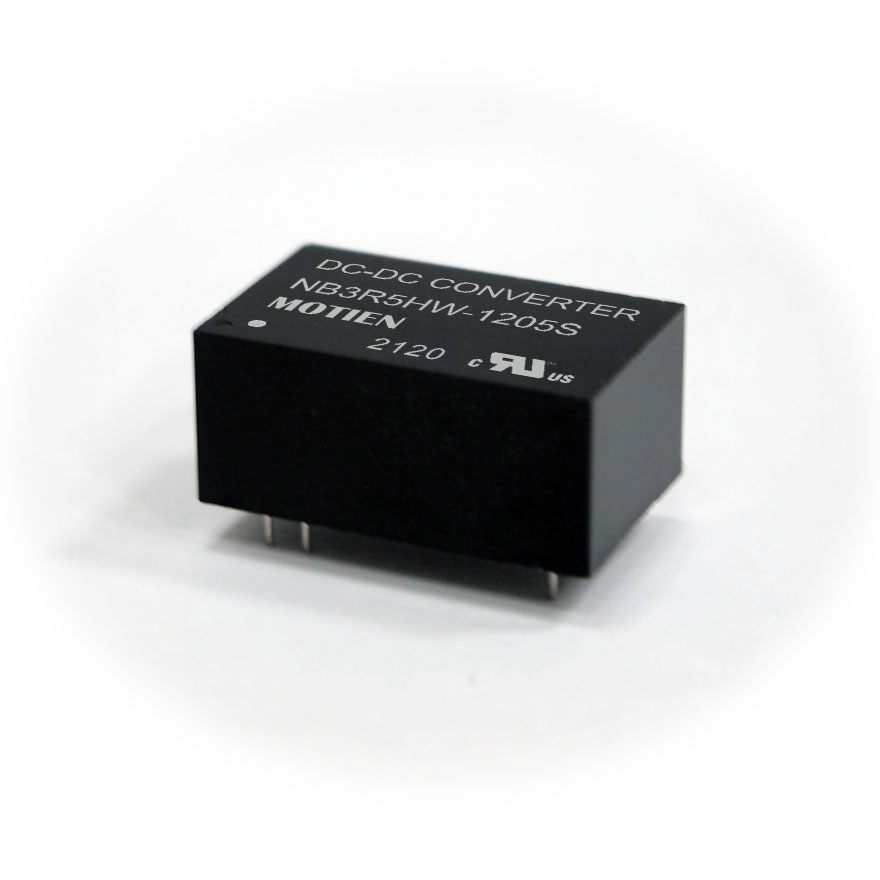

The NB3R5HW series is a family of effective and high performanced 3.5W single & dual output DC-DC converters. These converters are built in non-conductive black plastic package in a 16-pin DIL miniature compact case with high performance features wide range devices operate over 4:1 input voltage range providing stable output voltage. Devices are encapsulated using flame retardant resin. Input voltages of 12, 24, 48 VDC with output voltage of 5, 12, 15, ±12, ±15 VDC. High performance features include high efficiency operation up to 84% and output voltage accuracy of ±1% maximum.
● Compact DIP-16-package
● Wide 4:1 Input Range
● Isolation Voltage up to 5000VAC
● Reinforced Insulation for 250Vrms Working Voltage
● Continuous Short Circuit Protection
● Under Voltage Protection
● Remote On/Off Control
● Efficiency up to 84%
● -40 ~ 90°C Operation Temperature Range
Download
| No. | Title | Download |
|---|---|---|
| 1 | NB3R5HW DATASHEET | |
| 2 | NB3R5HW CE_EN 55032 55024 55035 | |
| 3 | NB3R5HW CB_IEC 62368-1 | |
| 4 | NB3R5HW UL 62368-1 | |
| 5 | NB3R5HW SERIES RoHS | |
| 6 | NB3R5HW-3.5W EU DoC | |
| 7 | NB3R5HW-3.5W UK DoC |
| Model No. | Output Power | Input Voltage | Output Voltage | Output Current(mA) | Package |
|---|---|---|---|---|---|
| NB3R5HW-1205S | 3.5W | 4.5-18 | 5 | 700 | DIP16 |
| NB3R5HW-1212S | 3.5W | 4.5-18 | 12 | 292 | DIP16 |
| NB3R5HW-1215S | 3.5W | 4.5-18 | 15 | 234 | DIP16 |
| NB3R5HW-1212D | 3.5W | 4.5-18 | ±12 | ±146 | DIP16 |
| NB3R5HW-1215D | 3.5W | 4.5-18 | ±15 | ±117 | DIP16 |
| NB3R5HW-2405S | 3.5W | 9-36 | 5 | 700 | DIP16 |
| NB3R5HW-2412S | 3.5W | 9-36 | 12 | 292 | DIP16 |
| NB3R5HW-2415S | 3.5W | 9-36 | 15 | 234 | DIP16 |
| NB3R5HW-2412D | 3.5W | 9-36 | ±12 | ±146 | DIP16 |
| NB3R5HW-2415D | 3.5W | 9-36 | ±15 | ±117 | DIP16 |
| NB3R5HW-4805S | 3.5W | 18-75 | 5 | 700 | DIP16 |
| NB3R5HW-4812S | 3.5W | 18-75 | 12 | 292 | DIP16 |
| NB3R5HW-4815S | 3.5W | 18-75 | 15 | 234 | DIP16 |
| NB3R5HW-4812D | 3.5W | 18-75 | ±12 | ±146 | DIP16 |
| NB3R5HW-4815D | 3.5W | 18-75 | ±15 | ±117 | DIP16 |
