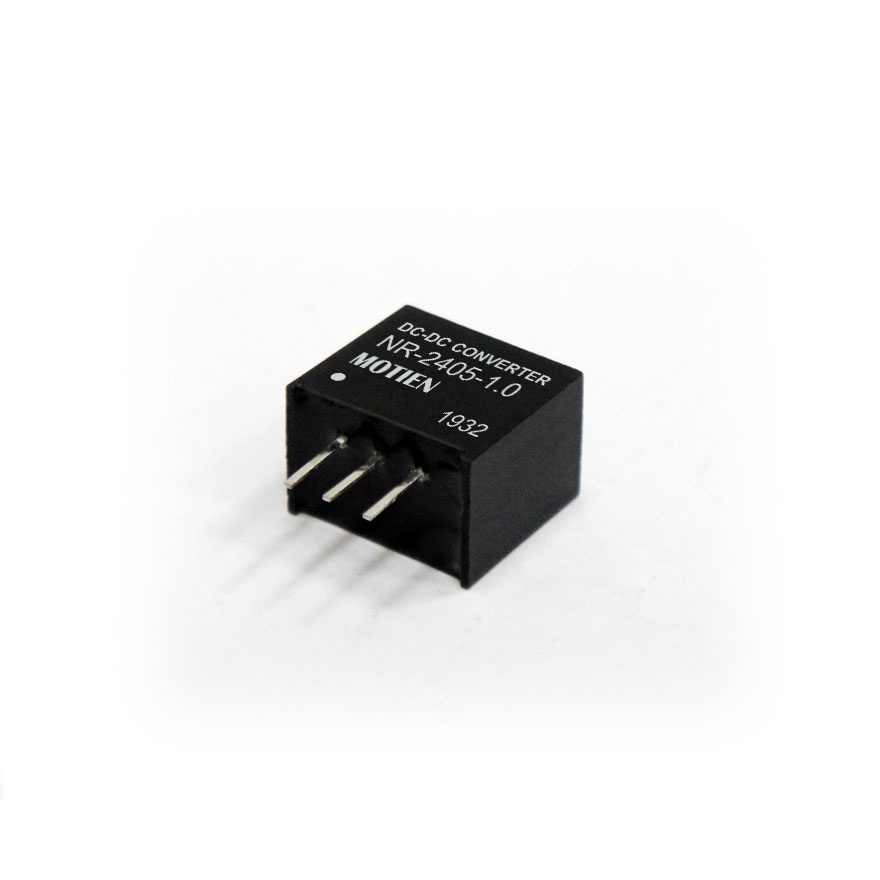

NR-1.0 Series
1A Output Current, Non-Isolated DC-DC converter
The NR-1.0 series is a family of cost effective 1,2~15W single output buck DC-DC converters. These converters are encapsulated in a non-conductive black plastic package 3-pin SIL case, continuous short circuit protection with automatic restart, good line/load regulation and ultra low quiescence current. Devices are filled up with flame retardant resin. Input voltages of 4.6~36Vdc with output voltage of 1.2, 1.5, 1.8, 2.5, 3.3, 5, 6.5, 9, 12 and 15Vdc. High performance features include high efficiency operation up to 96%
●3 Pin SIL, Full SMD Technology
●Non isolated Regulator
●Wide Input Range, Step-down switching DC-DC converter
●High voltage input range, up to 36V
●Continuous Short Circuit Protection
●Pin-out compatible with LM78XX three terminals positive Regulator
●Efficiency up to 96%
●Low ripple and noise
Download
| No. | Title | Download |
|---|---|---|
| 1 | NR-1.0 DATASHEET | |
| 2 | NR-1.0 CE_EN 55032 55024 | |
| 3 | NR-1.0 SERIES ROHS | |
| 4 | NR-1.0 EU DoC | |
| 5 | NR-1.0 UK DoC |
| Model No. | Output Power | Input Voltage | Output Voltage | Output Current(mA) | Package |
|---|---|---|---|---|---|
| NR-241R2-1.0 | 1A | 24 (4.6-36) | 1.2 | 1000 | SIP3 |
| NR-241R5-1.0 | 1A | 24 (4.6-36) | 1.5 | 1000 | SIP3 |
| NR-241R8-1.0 | 1A | 24 (4.6-36) | 1.8 | 1000 | SIP3 |
| NR-242R5-1.0 | 1A | 24 (4.6-36) | 2.5 | 1000 | SIP3 |
| NR-243R3-1.0 | 1A | 24 (4.75-36) | 3.3 | 1000 | SIP3 |
| NR-2405-1.0 | 1A | 24 (6.5-36) | 5 | 1000 | SIP3 |
| NR-246R5-1.0 | 1A | 24 (9-36) | 6.5 | 1000 | SIP3 |
| NR-2409-1.0 | 1A | 24 (12-36) | 9 | 1000 | SIP3 |
| NR-2412-1.0 | 1A | 24 (15-36) | 12 | 1000 | SIP3 |
| NR-2415-1.0 | 1A | 24 (18-36) | 15 | 1000 | SIP3 |
