V4-1W 系列
1W 稳压单输出

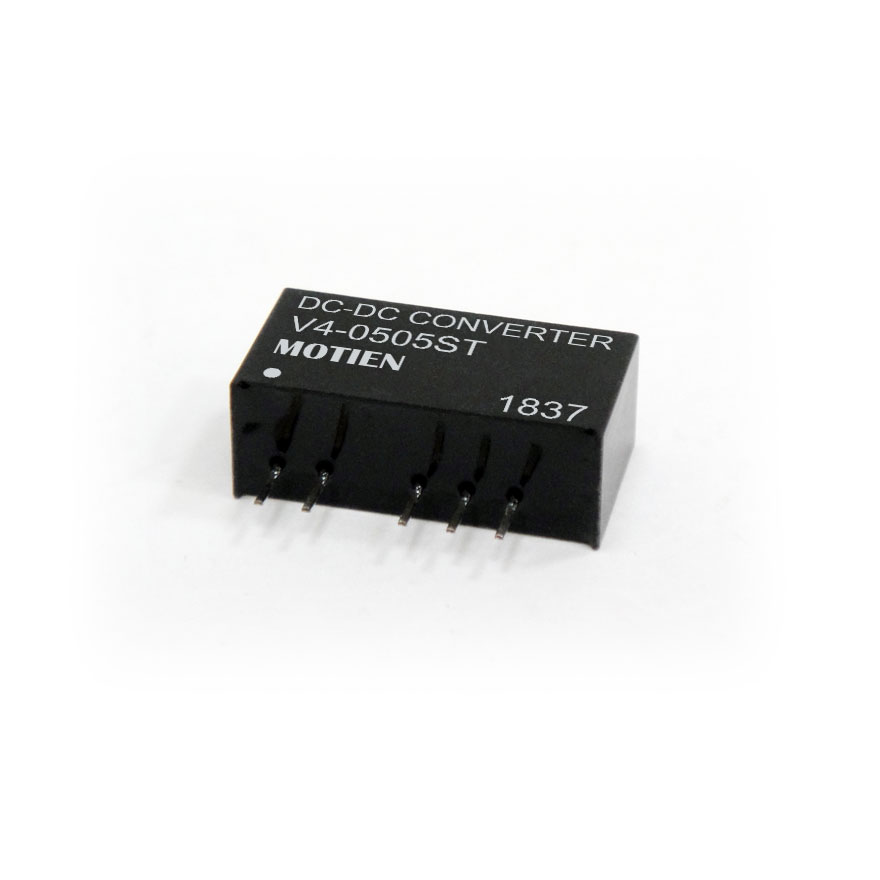

V4 系列是具有成本效率的1W单/双输出直流对直流电源转换器。V4-1W系列为低成本产品，包装为SIP7与DIP14，使用不易燃树脂。输入电压为3.3, 5, 12, 24 Vdc.，输出电压为3.3, 5,7.2, 9, 12,15 Vdc.。包含高性能1000 Vdc.~3000 Vdc. 输入/输出隔离电压，输出电压准确度最高可达±2%。产品皆具备输入范围±10%公差与低连波噪声。
● 双排十四脚 / 单排七脚包装
● 1000 VDC 至3000 VDC 之隔离电压
● 低连波噪声
● 效率高达 73%
● 操作温度范围 -40°C ~+85°C
● 绝缘黑色塑料外壳
Download
| No. | Title | Download |
|---|---|---|
| 1 | V4-1W DATASHEET | |
| 2 | V4-1W CE_EN55032 55024 | |
| 3 | V4 SERIES ROHS | |
| 4 | V4-1W EU Doc | |
| 5 | V4-1W UK Doc |
H字尾为 3 K Vdc 隔离
| 型号 | 输出功率 | 输入电压范围(VDC) | 输出电压(VDC) | 输出电流 | 包装 |
|---|---|---|---|---|---|
| V4-3R33R3DT | 1W | 3.3 | 3.3 | 303 | DIP 14 |
| V4-3R305DT | 1W | 3.3 | 5 | 200 | DIP 14 |
| V4-3R37R2DT | 1W | 3.3 | 7.2 | 139 | DIP 14 |
| V4-3R309DT | 1W | 3.3 | 9 | 111 | DIP 14 |
| V4-3R312DT | 1W | 3.3 | 12 | 83 | DIP 14 |
| V4-3R315DT | 1W | 3.3 | 15 | 67 | DIP 14 |
| V4-053R3DT | 1W | 5 | 3.3 | 303 | DIP 14 |
| V4-0505DT | 1W | 5 | 5 | 200 | DIP 14 |
| V4-057R2DT | 1W | 5 | 7.2 | 139 | DIP 14 |
| V4-0509DT | 1W | 5 | 9 | 111 | DIP 14 |
| V4-0512DT | 1W | 5 | 12 | 83 | DIP 14 |
| V4-0515DT | 1W | 5 | 15 | 67 | DIP 14 |
| V4-123R3DT | 1W | 12 | 3.3 | 303 | DIP 14 |
| V4-1205DT | 1W | 12 | 5 | 200 | DIP 14 |
| V4-127R2DT | 1W | 12 | 7.2 | 139 | DIP 14 |
| V4-1209DT | 1W | 12 | 9 | 111 | DIP 14 |
| V4-1212DT | 1W | 12 | 12 | 83 | DIP 14 |
| V4-1215DT | 1W | 12 | 15 | 67 | DIP 14 |
| V4-243R3DT | 1W | 24 | 3.3 | 333 | DIP 14 |
| V4-2405DT | 1W | 24 | 5 | 200 | DIP 14 |
| V4-247R2DT | 1W | 24 | 7.2 | 139 | DIP 14 |
| V4-2409DT | 1W | 24 | 9 | 111 | DIP 14 |
| V4-2412DT | 1W | 24 | 12 | 83 | DIP 14 |
| V4-2415DT | 1W | 24 | 15 | 67 | DIP 14 |
