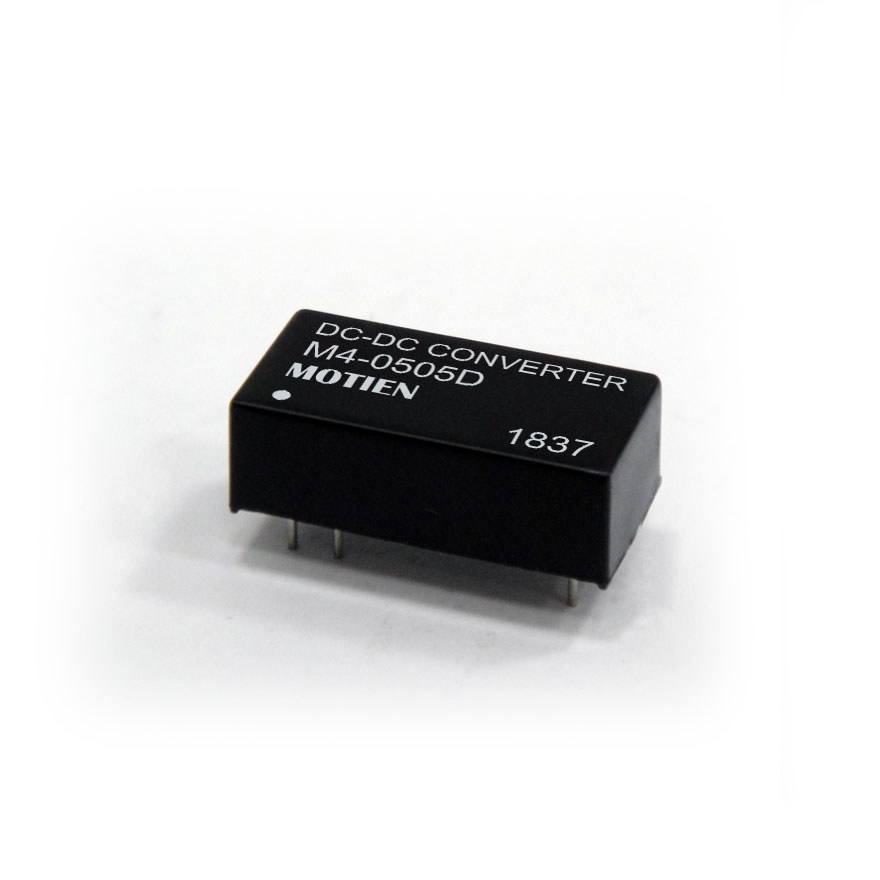

M4-1W Series
1W Regulated Single output
The M4 series is a family of cost effective 1W single output DC-DC converters. These converters achieve low cost and ultra-miniature SIP 7 pin or DIP 14 pin size. Devices are encapsulated using flame retardant resin. The models operate from input voltage of 5, 12, 24 VDC with output voltage of 3.3, 5, 7.2, 9, 12, 15 VDC. Featuring high efficiency up to 69% (input voltage range ±10%) and output short circuit protection.
● SIP 7 / DIP14 Package
● 1000 VDC Isolation, Up to 3000 VDC Isolation
● Continue Short Current Protection
● Operation Temperature Range -40 ~ 80°C max.
Download
| No. | Title | Download |
|---|---|---|
| 1 | M4-1W DATASHEET | |
| 2 | M4-1W CE_EN55032 55024 | |
| 3 | M4 SEIRES ROHS | |
| 4 | M4-1W EU DoC | |
| 5 | M4-1W UK DoC |
Suffix “H” means 3 KVdc isolation
| Model No. | Output Power | Input Voltage | Output Voltage | Output Current(mA) | Package |
|---|---|---|---|---|---|
| M4-053R3D | 1W | 5 | 3.3 | 303 | DIP 14 |
| M4-0505D | 1W | 5 | 5 | 200 | DIP 14 |
| M4-057R2D | 1W | 5 | 7.2 | 139 | DIP 14 |
| M4-0509D | 1W | 5 | 9 | 111 | DIP 14 |
| M4-0512D | 1W | 5 | 12 | 83 | DIP 14 |
| M4-0515D | 1W | 5 | 15 | 67 | DIP 14 |
| M4-123R3D | 1W | 12 | 3.3 | 303 | DIP 14 |
| M4-1205D | 1W | 12 | 5 | 200 | DIP 14 |
| M4-127R2D | 1W | 12 | 7.2 | 139 | DIP 14 |
| M4-1209D | 1W | 12 | 9 | 111 | DIP 14 |
| M4-1212D | 1W | 12 | 12 | 83 | DIP 14 |
| M4-1215D | 1W | 12 | 15 | 67 | DIP 14 |
| M4-243R3D | 1W | 24 | 3.3 | 303 | DIP 14 |
| M4-2405D | 1W | 24 | 5 | 200 | DIP 14 |
| M4-247R2D | 1W | 24 | 7.2 | 139 | DIP 14 |
| M4-2409D | 1W | 24 | 9 | 111 | DIP 14 |
| M4-2412D | 1W | 24 | 12 | 83 | DIP 14 |
| M4-2415D | 1W | 24 | 15 | 67 | DIP 14 |
