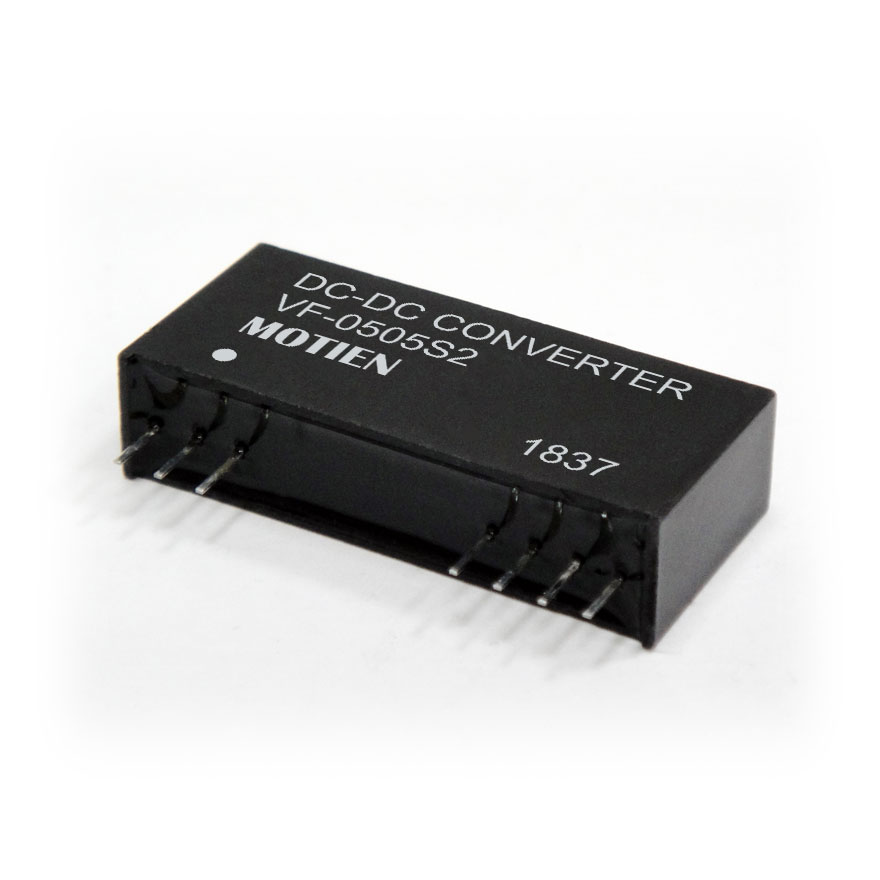

VF-2W Series
2W Regulated Single output
The VF-2W series is a family of cost effective 2W single output DC-DC converters. These converters combine miniature package in a 12-pin SIL compatible case with high performance features such as 1000 ~ 5200 VDC input / output isolation voltage, continuous short circuit protection with automatic restart and hight line / load regulation. Devices are encapsulated using flame retardant resin. Input voltages of 5, 12, 24 with output voltage of 3.3, 5, 7.2, 9, 12, 15, 18, 24 VDC. High performance features include high efficiency operation up to 72% and output voltage accuracy of ±2% maximum. Standard features include an input range of ±10% tolerance and low output noise and ripple.
● SIP12 Package
● 1000 VDC Isolation
● Up to 5200 VDC Isolation
● Continuous Short Circuit Protection
● Efficiency up to 72%
● Operation Temperature Range -25 ~ 100°C max.
Download
| No. | Title | Download |
|---|---|---|
| 1 | VF-2W DATASHEET | |
| 2 | VF-2W CE_EN55032 55024 55035 | |
| 3 | VF SERIES ROHS | |
| 4 | VF-2W EU DoC | |
| 5 | VF-2W UK DoC |
Suffix “H” means 3 KVdc isolation；Suffix “H4” means 4 KVdc isolation；Suffix “H5” means 5.2 KVdc isolation
| Model No. | Output Power | Input Voltage | Output Voltage | Output Current(mA) | Package |
|---|---|---|---|---|---|
| VF-053R3S2 | 1.65W | 4.5-5.5 | 3.3 | 500 | SIP12 |
| VF-0505S2 | 2W | 4.5-5.5 | 5 | 400 | SIP12 |
| VF-057R2S2 | 2W | 4.5-5.5 | 7.2 | 278 | SIP12 |
| VF-0509S2 | 2W | 4.5-5.5 | 9 | 222 | SIP12 |
| VF-0512S2 | 2W | 4.5-5.5 | 12 | 167 | SIP12 |
| VF-0515S2 | 2W | 4.5-5.5 | 15 | 133 | SIP12 |
| VF-0518S2 | 2W | 4.5-5.5 | 18 | 111 | SIP12 |
| VF-0524S2 | 2W | 4.5-5.5 | 24 | 83 | SIP12 |
| VF-123R3S2 | 1.65W | 10.8-13.2 | 3.3 | 600 | SIP12 |
| VF-1205S2 | 2W | 10.8-13.2 | 5 | 400 | SIP12 |
| VF-127R2S2 | 2W | 10.8-13.2 | 7.2 | 278 | SIP12 |
| VF-1209S2 | 2W | 10.8-13.2 | 9 | 222 | SIP12 |
| VF-1212S2 | 2W | 10.8-13.2 | 12 | 167 | SIP12 |
| VF-1215S2 | 2W | 10.8-13.2 | 15 | 133 | SIP12 |
| VF-1218S2 | 2W | 10.8-13.2 | 18 | 111 | SIP12 |
| VF-1224S2 | 2W | 10.8-13.2 | 24 | 83 | SIP12 |
| VF-243R3S2 | 1.65W | 21.6-26.4 | 3.3 | 500 | SIP12 |
| VF-2405S2 | 2W | 21.6-26.4 | 5 | 400 | SIP12 |
| VF-247R2S2 | 2W | 21.6-26.4 | 7.2 | 278 | SIP12 |
| VF-2409S2 | 2W | 21.6-26.4 | 9 | 222 | SIP12 |
| VF-2412S2 | 2W | 21.6-26.4 | 12 | 167 | SIP12 |
| VF-2415S2 | 2W | 21.6-26.4 | 15 | 133 | SIP12 |
| VF-2418S2 | 2W | 21.6-26.4 | 18 | 111 | SIP12 |
| VF-2424S2 | 2W | 21.6-26.4 | 24 | 83 | SIP12 |
