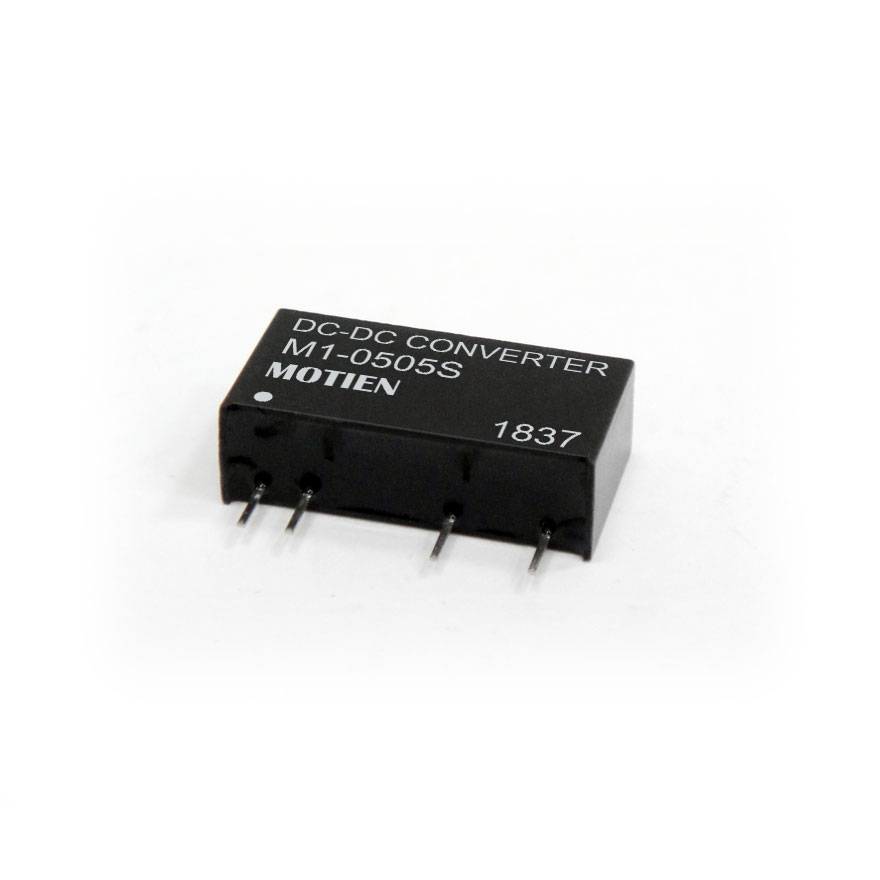

M1-1W Series
1W Semi-regulated Single & Dual output
The M1-1W series is a family of cost effective 1W single & dual output DC-DC converters. These converters achieve low cost, high efficiency, semi-regulated and ultra-miniature SIP 7 pin size. Devices are encapsulated using flame retardant resin. The models operate from input voltage of 5, 12, 15, 24, 48 VDC with output voltage of 5, 9, 12, 15, ±5, ±9, ±12, ±15 VDC. High efficiency operation and output voltage accuracy of ±3% maximum. Standard features include an input range of ±10% tolerance and low output noise and ripple.
● SIP7 Package
● Semi-regulated output
● 1000 VDC Isolation, Up to 3000 VDC Isolation
● Efficiency up to 90%
● Operation Temperature Range -40 ~ 95°C max.
● Non-Conductive Black Plastic Case
Download
| No. | Title | Download |
|---|---|---|
| 1 | M1-1W DATASHEET | |
| 2 | M1-1W CE_EN55032 55024 55035 | |
| 3 | M1 SERIES ROHS | |
| 4 | M1-1W EU DoC | |
| 5 | M1-1W UK DoC |
Suffix “H” means 3 KVdc isolation
| Model No. | Output Power | Input Voltage | Output Voltage | Output Current(mA) | Package |
|---|---|---|---|---|---|
| M1-0505S | 1W | 5 | ±5 | ±100 | SIP 7 |
| M1-0509S | 1W | 5 | ±9 | ±55.55 | SIP 7 |
| M1-0512S | 1W | 5 | ±12 | ±41.67 | SIP 7 |
| M1-0515S | 1W | 5 | ±15 | ±33.33 | SIP 7 |
| M1-1205S | 1W | 12 | ±5 | ±100 | SIP 7 |
| M1-1209S | 1W | 12 | ±9 | ±55.55 | SIP 7 |
| M1-1212S | 1W | 12 | ±12 | ±41.67 | SIP 7 |
| M1-1215S | 1W | 12 | ±15 | ±33.33 | SIP 7 |
| M1-1505S | 1W | 15 | ±5 | ±100 | SIP 7 |
| M1-1509S | 1W | 15 | ±9 | ±55.55 | SIP 7 |
| M1-1512S | 1W | 15 | ±12 | ±41.67 | SIP 7 |
| M1-1515S | 1W | 15 | ±15 | ±33.33 | SIP 7 |
| M1-2405S | 1W | 24 | ±5 | ±100 | SIP 7 |
| M1-2409S | 1W | 24 | ±9 | ±55.55 | SIP 7 |
| M1-2412S | 1W | 24 | ±12 | ±41.67 | SIP 7 |
| M1-2415S | 1W | 24 | ±15 | ±33.33 | SIP 7 |
| M1-4805S | 1W | 48 | ±5 | ±100 | SIP 7 |
| M1-4809S | 1W | 48 | ±9 | ±55.55 | SIP 7 |
| M1-4812S | 1W | 48 | ±12 | ±41.67 | SIP 7 |
| M1-4815S | 1W | 48 | ±15 | ±33.33 | SIP 7 |
| M1-0505SS | 1W | 5 | 5 | 200 | SIP 7 |
| M1-0509SS | 1W | 5 | 9 | 111.1 | SIP 7 |
| M1-0512SS | 1W | 5 | 12 | 83.3 | SIP 7 |
| M1-0515SS | 1W | 5 | 15 | 66.7 | SIP 7 |
| M1-1205SS | 1W | 12 | 5 | 200 | SIP 7 |
| M1-1209SS | 1W | 12 | 9 | 111.1 | SIP 7 |
| M1-1212SS | 1W | 12 | 12 | 83.3 | SIP 7 |
| M1-1215SS | 1W | 12 | 15 | 66.7 | SIP 7 |
| M1-1505SS | 1W | 15 | 5 | 200 | SIP 7 |
| M1-1509SS | 1W | 15 | 9 | 111.1 | SIP 7 |
| M1-1512SS | 1W | 15 | 12 | 83.3 | SIP 7 |
| M1-1515SS | 1W | 15 | 15 | 66.7 | SIP 7 |
| M1-2405SS | 1W | 24 | 5 | 200 | SIP 7 |
| M1-2409SS | 1W | 24 | 9 | 111.1 | SIP 7 |
| M1-2412SS | 1W | 24 | 12 | 83.3 | SIP 7 |
| M1-2415SS | 1W | 24 | 15 | 66.7 | SIP 7 |
| M1-4805SS | 1W | 48 | 5 | 200 | SIP 7 |
| M1-4809SS | 1W | 48 | 9 | 111.1 | SIP 7 |
| M1-4812SS | 1W | 48 | 12 | 83.3 | SIP 7 |
| M1-4815SS | 1W | 48 | 15 | 66.7 | SIP 7 |
