PRODUCTS
DIP 24

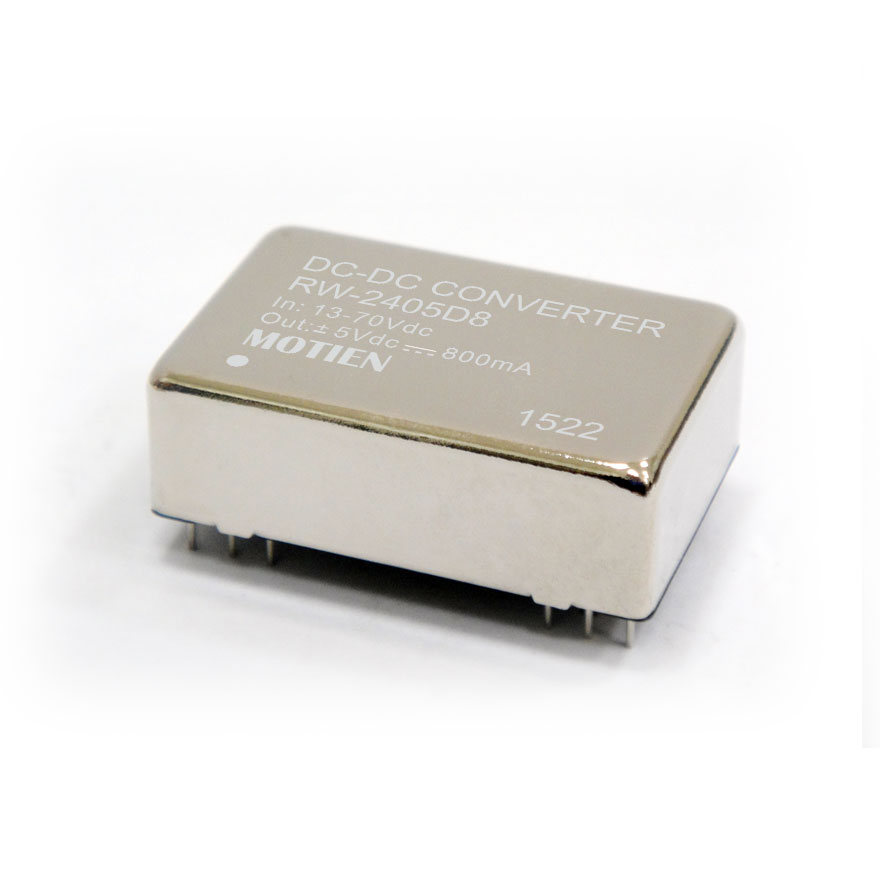

MOTIEN Technology offers a complete product series of isolated DC/DC converters with fully regulated output voltage. The newest DIP 24 railway series with ultra wide input range 5:1 with output power 8W. Feature includes 3000Vdc isolation, continuous short circuit protection, under voltage lock-out circuit, over voltage/load protection with remote on/off function. RW-8W series is EN50155 approved which can be applied for railway applications.
| Series No. | Output Power | Input Voltage | Output Voltage | I/O Isolation | Package(Inch) | Un/Regulated | Cert. |
|---|---|---|---|---|---|---|---|
RW-8W |
8W | 13-70, 42-176 | 3.3, 5, 12, 15, ±5, ±12, ±15 | 3KV | DIP 24 (1.25*0.8*0.4) | Regulated | - |
