2×2 (7.5-60W)

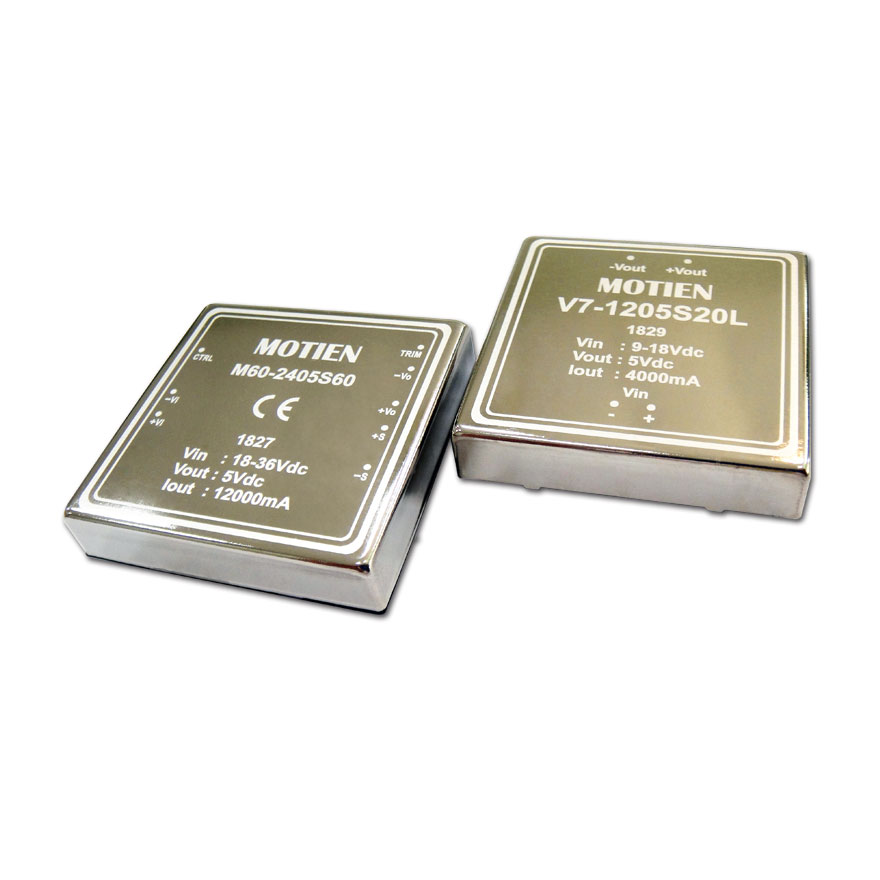

MOTIEN Technology offers a complete product series of isolated DC/DC converters with fully regulated output voltage. Feature includes high power density with adequate 2"x2" package, option of output power from 7.5W to 60W, and with Isolation voltage of 1500 or 1600Vdc. All series are equipped with continuous short circuit protection. For M40A and M60 series, over current/temperature/voltage protection are built-in and with the additional function of adjustable output voltage, remote on/off control and soft start. Optional heat sink can be a good choice for this package. All models are with high efficiency and CE certification!
Series No. | Output Power | Input Voltage | Output Voltage | I/O Isolation | Package(Inch) | Un/Regulated | Cert. |
---|---|---|---|---|---|---|---|
V7L-30W |
30W | 9-18, 18-36, 36-72 | 3.3, 5, 7.2, 9, 12, 15, 18, 24, ±3.3, ±5, ±7.2, ±9, ±12, ±15, ±18, ±24 | 1.5KV | 2×2 (2*2*0.4) | Regulated | - |
M40A-40W |
40W | 9-36, 18-75 | 3.3, 5, 12, 15, ±12, ±15 | 1.6KV | 2×2 (2*2*0.4) | Regulated | - |
M60-60W |
60W | 18-36, 36-75 | 3.3, 5, 12, 15 | 1.6KV | 2×2 (2*2*0.4) | Regulated | - |
