2×1 (7.5-60W)

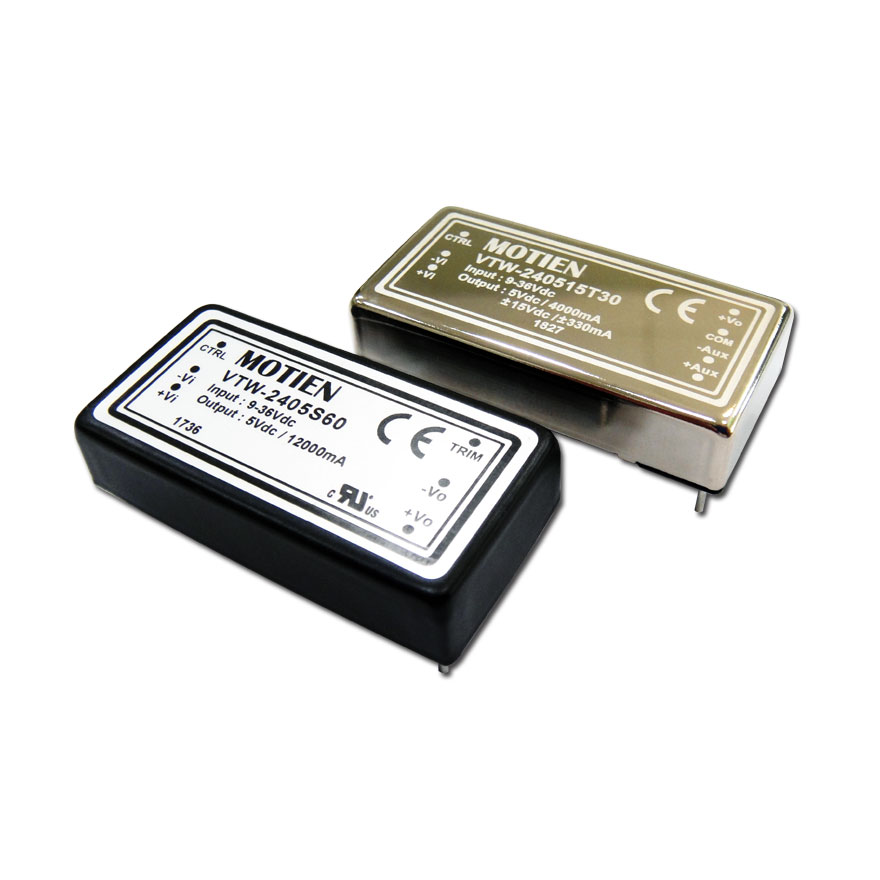

MOTIEN Technology offers a complete product series of isolated DC/DC converters with fully regulated output voltage. Feature includes high power density with adequate 2"x1" package, option of output power from 7.5W to 60W. Both 2:1 & 4:1 input range are available. All series are equipped with continuous short circuit protection. Optional heat sink can be a good choice and the safety approval are also acquired to prove its reliability. All models are with high efficiency and CE certification!

Series No. Output Power Input Voltage Output Voltage I/O Isolation Package(Inch) Un/Regulated Cert.

V7-10W

 10W 9-18, 18-36, 36-72 3.3, 5, 7.2, 9, 12, 15, 18, 24, ±3.3, ±5, ±7.2, ±9, ±12, ±15, ±18, ±24 1.5KV 2×1 (2*1*0.4) Regulated V

V7-15W

 15W 9-18, 18-36, 36-72 3.3, 5, 7.2, 9, 12, 15, 18, 24, ±3.3, ±5, ±7.2, ±9, ±12, ±15, ±18, ±24 1.5KV 2×1 (2*1*0.4) Regulated V

V7E-15W

 15W 9-18, 18-36, 36-72 3.3, 5, 12, 15, ±3.3, ±5, ±12, ±15 1.6KV 2×1 (2*1*0.4) Regulated -

V7W-10W

 10W 9-36, 18-72 3.3, 5, 7.2, 9, 12, 15, ±5, ±7.2, ±9, ±12, ±15 1.5KV 2×1 (2*1*0.4) Regulated V

V7W-15W

 15W 9-36, 18-72 3.3, 5, 7.2, 9, 12, 15, ±5, ±7.2, ±9, ±12, ±15 1.5KV 2×1 (2*1*0.4) Regulated V

V8-20W

 20W 9-18, 18-36, 36-75 3.3, 5, 12, 15, ±12, ±15 1.6KV 2×1 (2*1*0.4) Regulated -

V9-20W

 20W 9-36, 18-75 3.3, 5, 12, 15, ±5, ±12, ±15 1.6KV 2×1 (2*1*0.4) Regulated V

VT-30W

 30W 9-18, 18-36, 36-75 3.3, 5, 5.1, 12, 15, ±5, ±12, ±15 1.6KV 2×1 (2*1*0.4) Regulated -

VT-40W

 40W 9-18, 18-36, 36-75 3.3, 5, 12, 15, ±12, ±15 1.6KV 2×1 (2*1*0.4) Regulated -

VT-50W

 50W 9-18, 18-36, 36-75 3.3, 5, 12, 15 1.6KV 2×1 (2*1*0.45) Regulated V

VTW-30W

 30W 9-36, 18-75 3.3, 5, 5.1, 12, 15, ±5, ±12, ±15, 3.3/±12, 3.3/±15, 5/±12, 5/±15 1.6KV 2×1 (2*1*0.4) Regulated -

new
VTW-60W

 60W 9-36, 18-75 5, 12, 15, ±12, ±15 1.6KV 2×1 (2*1*0.45) Regulated V
